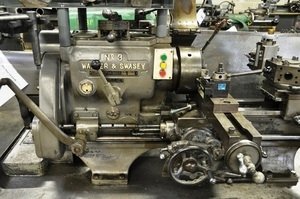

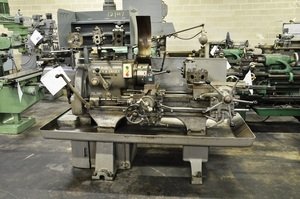

#3 WARNER & SWASEY TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 12147
Serial # 578256 Model # M-1200
Swing Over Ways: 15"
Swing Over Cross Slide: 7"
Cross Slide Travel: 8"
Carriage Travel: 17"
Carriage Feeds: .0025 to .026 TPR
Max. Distance Turret Face to Spindle Nose: Approx. 26"
6-Position Turret
Turret Feeds: .003 to .030 TPR
Max. Turret Stroke: 10"
(12) Spindle Speeds: 67 to 1480 RPM
Spindle Hole: 1-27/32"
Spindle Nose: A-6
Bar Feed Capacity: 1-1/2"

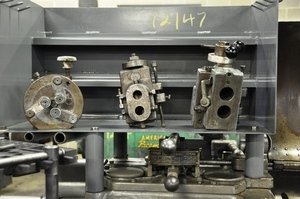

10" 3-Jaw Manual Chuck
(3) Slide Tools
Yuasa Quick Change Tool Post with (1) Tool Holder
Manual Collet Closer (No Master Collet or Collet Nose Piece)
Coolant
Work Light
7-1/2 / 3-1/2 HP 2-Speed Motor, 3 Phase, 60 Cycle, 220 Volts
Machine Overall Dimensions: 8-1/2' L x 4-1/2' W x 71" H

#3 WARNER & SWASEY TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00

Stock # 12147
Serial # 578256 Model # M-1200

Swing Over Ways: 15"
Swing Over Cross Slide: 7"
Cross Slide Travel: 8"
Carriage Travel: 17"
Carriage Feeds: .0025 to .026 TPR
Max. Distance Turret Face to Spindle Nose: Approx. 26"
6-Position Turret
Turret Feeds: .003 to .030 TPR
Max. Turret Stroke: 10"
(12) Spindle Speeds: 67 to 1480 RPM
Spindle Hole: 1-27/32"
Spindle Nose: A-6
Bar Feed Capacity: 1-1/2"
10" 3-Jaw Manual Chuck
(3) Slide Tools
Yuasa Quick Change Tool Post with (1) Tool Holder
Manual Collet Closer (No Master Collet or Collet Nose Piece)
Coolant
Work Light
7-1/2 / 3-1/2 HP 2-Speed Motor, 3 Phase, 60 Cycle, 220 Volts

Machine Overall Dimensions: 8-1/2' L x 4-1/2' W x 71" H

3625 (LBS)
