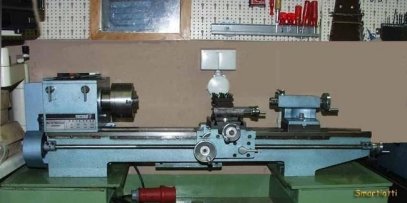

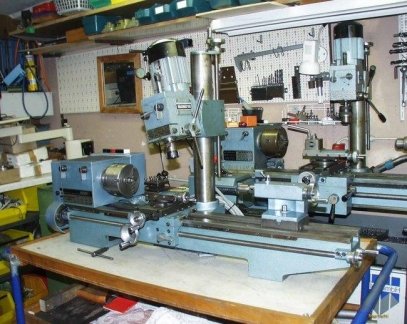

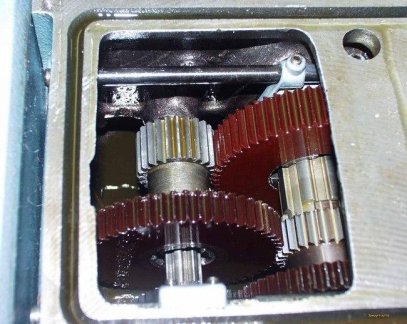

The EMCOMAT 7 a bargain! Inexpensive, reliable powerful accurate and versatile! beigeringem space. I have multiple Emcomat7 also Maximat10 / V10P / Mentor10! Dreh. in-resp. Alternating voltage. Distance between centers 600mm, height of 90 mm, height of 53 mm above support, floor space 1080 x 350 mm, weight about the 70th Gear-head: spindle head form E M-39 DIN 800 with MT 3, spindle bore 20 mm. Spindle speeds: 65130265350-530700 1400 to 2800 rev / min. with MT 3 spindle bore 20 mm for collets 2 - 20 mm, spindle bearing: 2 precision taper roller bearings. Feeds: longitudinal feed of the slide 0.05 and 0.12 mm per revolution of the spindle. Thread pitch metric threads of 0.4 mm 3.00 mm pitch Whitworth of 8 threads / inch bis80 threads / inch module thread of M 0.4 - M 1.00. Tailstock quill diameter 26 mm, 30 mm quill, taper MK 2 Motor: 380 V 1400/2800 r / min, 0.4 / 0.6 hp. By belt drive full engine power to the main spindle. Verikaleinrichtung: Maximum height between the support table (Qürsupport) and vertical spindle 250 mm, power 380 V = 0.2 HP, the vertical spindle speeds: 350 640 780 1450 r / min. Included: EMCOMAT 7/380V AC, 3-jaw chuck with internal + external jaws Einfa [...Technical data truncated]
