Max. diameter of workpiece: 6300 mm

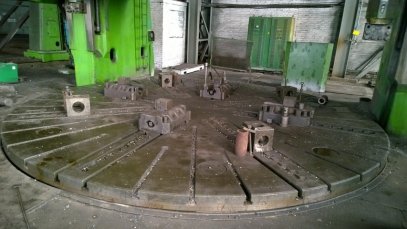

Table diameter: 6000 mm
Height of workpiece: 3200 mm

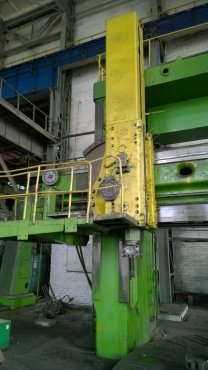

Course of vertical supports sliders: 2000 mm
Corner of supports turn: - 15 and +30
Weight of workpiece on a faceplate: 125 ton
Effort of cutting to a right support: 100 kH
Effort of cutting to the left support: 80 kH
Max. total effort of cutting by two supports: 160 kH
Vertical and horizontal feeding speed: 0,0352 - 285 mm/min
Table speed: 0,28 - 25,5 rpm
Capacity of the main drive: 125 kw
Height above a floor - 8300 mm
