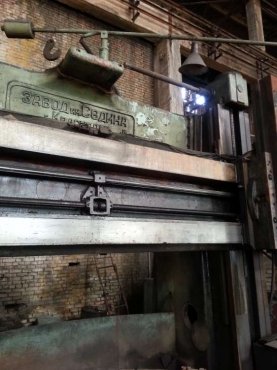

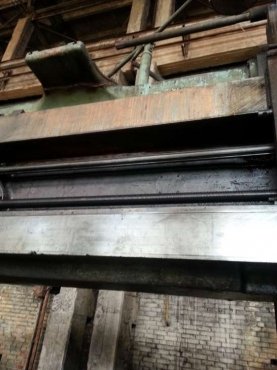

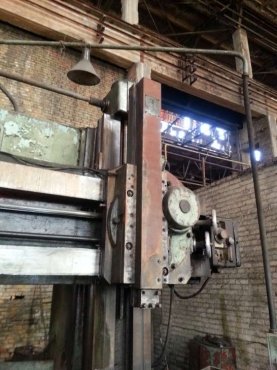

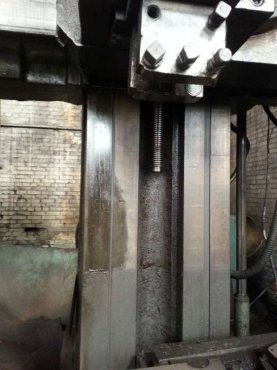

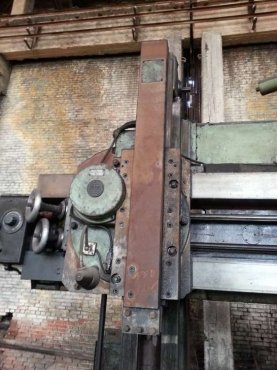

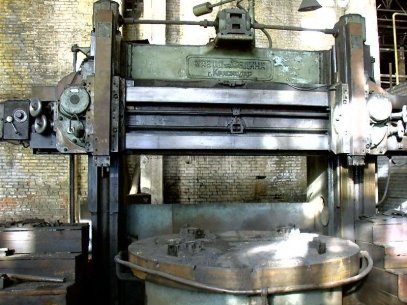

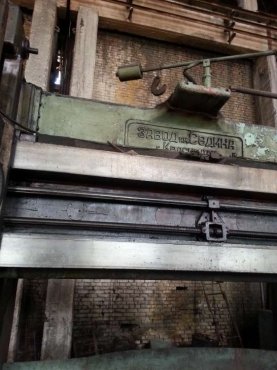

Vertical turning lathe SEDIN 1M557 made in Russia.
Specifications:
Swing: 3200 mm
Table speed: 1.8–63 rpm

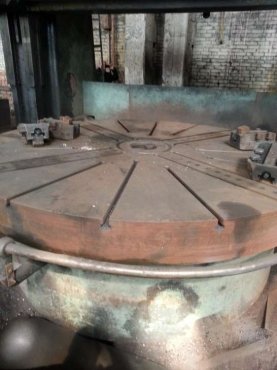

Table diameter: 2800 mm
Working height: 1600 mm
Max processing diameter of vertical supports: 3200 mm
Max work-piece:
-Height over the table: 1600 mm
-Weight: 16 ton
Max taper angle of the processing: 90...164 degrees
Max height of the processing by the taper with max taper angle: 800...1620 mm
Limited steps of cuttable threads:
-Metrical (steps in mm): 1...50
-Inch (amount of threads for 1''): 1...12
Rapid feeding:
-Horizontal: 2,2 m/min
-Vertical: 2,2 m/min
Max support turn angle: +-45 degrees
Max travel: 1200 mm
Speed of travel: 0,4 m/min
Main motor: 55 kW
