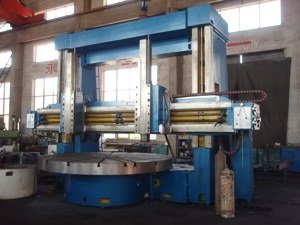

Main technical specifications of the lathe
Max. turning diameter 4000mm
Max. working height 1600mm
Max. weight of workpiece 10T
Table diameter 2830mm
Speed range of table 2-63 r/min
Speed-step of table 16 steps
Max torque of table 63 KN*m
Max cutting resistance of right tool post(T-Ram) 32 KN
Max. cutting resistance of left tool post(T-Ram) 28 KN
Travel of right tool post Horizontal 2150mm
Travel of right tool post Vertical (T-Ram) 1000mm
Travel of left tool post(Horizontal) 2150mm
Travel of left tool post(Vertical)(T-Ram) 1000mm
Feeding range and speed-step of left tool post 0.24~145mm/min 18
Fast moving speed of left tool post 1550mm/min
Crossbeam fluctuation travel 1700mm
Crossbeam fluctuation speed 350mm/min
Moving degrees limit of tool post ±30°
Cutting section of the tool post 40×50mm
Crossbeam fluctuation motor power (AC) 7.5 KW
Cutting feed two-speed motor power
of left feeding-box (AC) 1.3KW
Fast motor power (AC) 2.2 KW
Power of main motor (AC)55 KW
Specifications:
Main technical specifications of the lathe
Max. turning diameter 4000mm
Max. working height 1600mm
Max. weight of workpiece 10T
Table diameter 2830mm
Speed range of table 2-63 r/min
Speed-step of table 16 steps
Max torque of table 63 KN*m
Max cutting resistance of right tool post(T-Ram) 32 KN
Max. cutting resistance of left tool post(T-Ram) 28 KN
Travel of right tool post Horizontal 2150mm
Travel of right tool post Vertical (T-Ram) 1000mm
Travel of left tool post(Horizontal) 2150mm
Travel of left tool post(Vertical)(T-Ram) 1000mm
Feeding range and speed-step of left tool post 0.24-145mm/min 18
Fast moving speed of left tool post 1550mm/min
Crossbeam fluctuation travel 1700mm
Crossbeam fluctuation speed 350mm/min
Moving degrees limit of tool post ±30°
Cutting section of the tool post 40×50mm
Crossbeam fluctuation motor power (AC) 7.5 KW
Cutting feed two-speed motor power
of left feeding-box (AC) 1.3 KW
Fast motor power (AC) 2.2 KW
Power of main motor (AC) 55 KW
