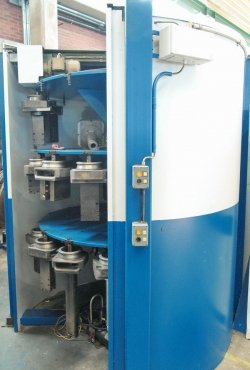

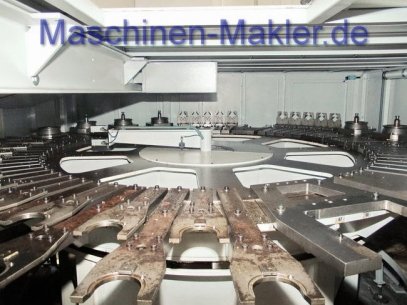

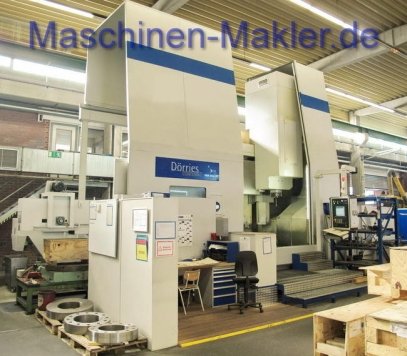

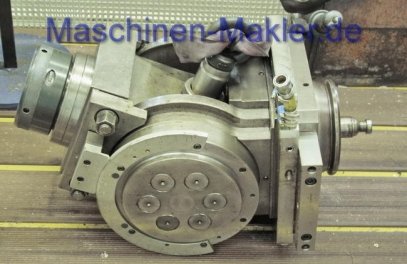

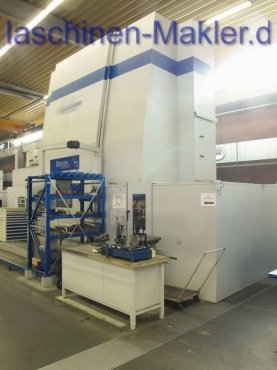

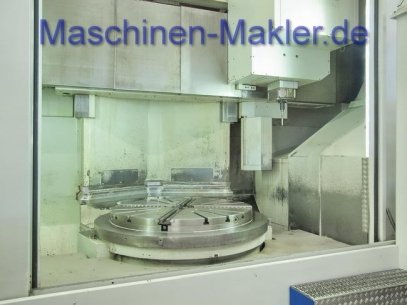

DOERRIES CNC turning and milling center CONTUMAT VCE 2000/140 MC, the basic machine in 2009 was overtaken by DOERRIES completely. Drives, controls, bearings, spindles, and much more, from scratch. Range see PDF file below. Make: DOERRIES Type: CONTUMAT VCE 2000/140 MC Year: 1987 Retrofit like new home in DOERRIES: 2009! Hours of operation since: 1061! Control: Siemens SINUMERIK 840D faceplate: 1400 mm Turning diameter: 2,000 mm working height max. : 2.260 mm faceplate - Qürbalken max: 1.500 mm Qürschnitt Meisselschieber: 240x240 mm Minimum Insertion diameter: 340 mm Maximum workpiece weight: 6,000 kg Power Faceplate: 80 kW Speed range: 1-88, 6-355 Udr. / Min. (2 steps) Maximum Torque: 27 535 Nm (1.6 to 22.2 Udr. / Min.) Power milling spindle. 37kW spindle taper SK 50 turning speed range: 7.7 to 3000 Udr. / Min. (2 steps) Max torque: 1,229 Nm Cooling: Internal coolant supply 30 bars Tool Changer: 52 sites included: -. Angular head SK 50, 2-1, + - 90 - 5 x Capto C6 Base holder - Coolant system KNOLL - RENISHAW Werkzeugmessystem - etc.
