Vertical Turning Center, 4 Axis, Fanuc OT-C Control, Max Swing 31.50", Max Cutting Dia 28.7", Max Cutting Length 30.7", Distance Between Spindles 43.3", 2,000 RPM, (2) 50 HP, (2) V10 Turrets, (2) 24" Hydraulic Chucks, Chip Conveyor

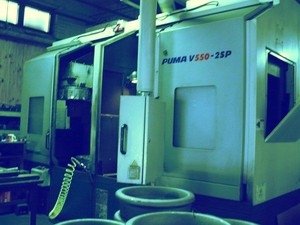

2006 Doosan V-550-2SP
4-Axis CNC Twin Spindle Vertical Turning Center
Fanuc 0T-C Control

Specifications:

Max. Swing 31.50"
Max. Cutting Dia. 28.7"
Max. Machining Length 30.7"
Distance Between Spindles 43.3"
X-Axis Travel 15.4"
Z-Axis Travel 31"
Rapid Traverse X, Z 472 IPM
Spindle Motor 30 Min. (2) 50 HP
Spindle Speed 2000 RPM

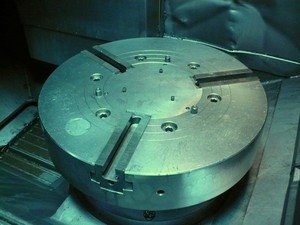

Chuck Diameter (2) 24" Hydraulic Chucks
Spindle Nose (2) A2-11"

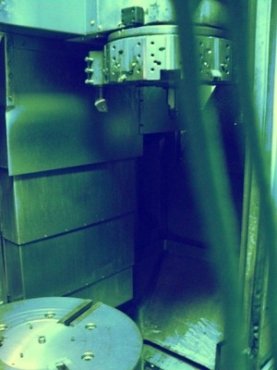

Turret Type (2) V10
Machine Weight 26,200 lbs.

Specifications to be confirmed at inspection

Equipped With:

Fanuc 0T-C Control (2) 24" Hydraulic Chucks

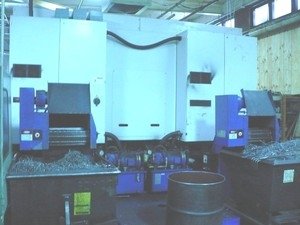

Chip Conveyor Coolant System
Full Guarding All Available Tools
All Available Manuals

Condition: Very Good

26,200 lbs.
