see attached spec sheet

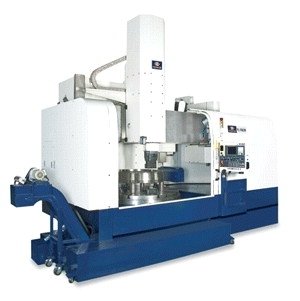

Type: Lathes, VTL (Vertical Turret Lathe)
Manuf: Honor Seiki
Model: VL-160CM
ID #:

Fanuc 18i-T Control

Machine Capacity
Max. swing diameter 78.7”
Max. cutting diameter 78.7”
Max. cutting height 49.2”
Chuck diameter 63”

Spindle
Spindle speed 3-250 RPM
Spindle bearing diameter 33.5”
2 Speed Gearbox

Turret
Number of tools: 16
Tool shank size 50 Taper
X-axis travel -7.87”/ +45.28”
Z-axis travel 35.4”
X-axis rapid travel 393 IPM
Z-axis rapid travel 393 IPM

Motor
Spindle motor AC 45/55 kw
X-axis servo motor 7 kw
Z-axis servo motor 7 kw

Measurement
LxW 228.4” x 157.5”
Machine height 216.53”
Net weight 62,260 lbs.
Total power consumption 90 KVA

CNC Systems, Inc.
40 Water Street
Kennebunk, ME 04043
207-985-6503
tgood@cncsystems.com
www.cncsystems.com

157.5 x 228.4 x 216.53"

62,260 lbs.
