Max. work piece diameter, mm 4000
Min. work piece diameter, mm 400
Max. work piece height, mm 2000
Max. work piece diameter with side support, mm 3750
Min. work piece diameter, mm 400
Max. work piece height with side support, mm 1400

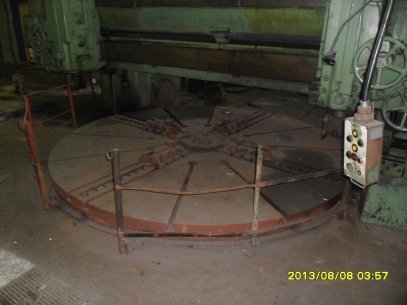

Chuck diameter, mm 3500
Max. distance between table and tool holder, mm 2050
Max. distance between table and traverse, mm 2250
Traverse movement, mm 1750
Min. distance between table axis and side support, mm 875
Supports' possible work angle, deg. 30
Max. cutter movement, mm:
- vertical 1400
- horizontal 1000
Min. distance between supports' centers, mm 780
Supports' rapid feeds, mm/min 1100
Traverse rapid feed, mm/min 500
Side support's rapid feed, mm/min 1800
Max. work piece weight, kg 25000
Chuck speed (stepless), rpm 0,7...28
Voltage, V 380
Frequency, Hz 50
Main motor power, kW 50
Machine dimensions, mm 4100 x 5270 x 4800
Machine weight, kg 90000
