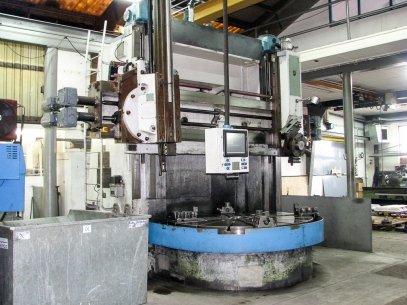

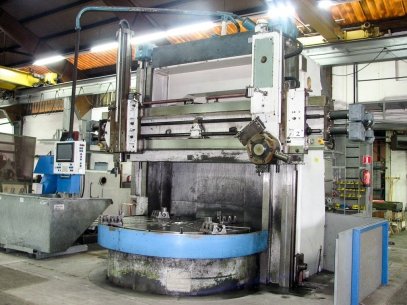

Vertical borer (Vertical Turning Lathe) STANKO model 1525 swing 2500 mm working height 1600 mm Vertical borer (Vertical Turning Lathe) STANKO model 1525 :

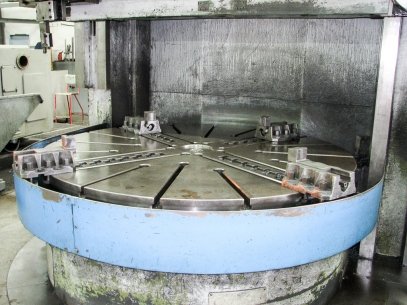

- Table diameter : 2250 mm
- Maximum swing : 2500 mm
- Working height : 1600 mm
- Speeds table : 2 - 120 rpm
- Main motor power : 55 kW
- Weight of part on table (maximum) : 12 T
- Vertical ram :
- Vertical travel : 1200 mm
- Inclination : +/- 30°
- Vertical travel with automatic turret (5 positions) :
- Vertical travel : 1000 mm
- Horizontal saddle, travel : 850 mm
- Distance between table and ram : 0 - 1780 mm
- Distance between table and crossrail : 400 - 1640 mm
- Weight of the machine : 39 T (aproximately)

-
