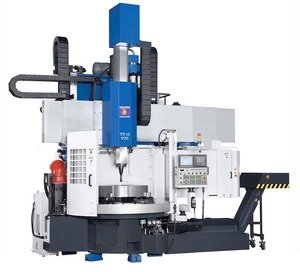

SPINDLE
Spindle Motor Type FANUC ɑ 30i/6000
Motor 50 HP / 30 Min
Gear Step 2
Spindle Speed Range 2-110; 2-350 Rpm
Max. Spindle Torque 9,710 Ft-Lb (13,160 N-M)
X & Z AXIS
Horizontal Travel (X-Axis) -7.87” – 66.9”
Vertical Travel (Z-Axis) 35.9”
X Axis Rapid 472 IPM(12 M/Min)
Z Axis Rapid 393 IPM(10 M/Min)
X-Axis Servo Motor FANUC ɑ 6i; 6 KW (8 HP)
Z-Axis Servo Motor FANUC ɑ 6i; 6 KW (8 HP)
CROSSRAIL
Travel 31.5”
No. of Position 5
Interval of position 7.87”
Locking device 4 hydraulic clamping cylinder with locking pin
Clamping force 32,000 KG
TOOL MAGAZINE
Magazine capacity 12
Spindle taper BT 50
Driven type Servo motor indexing
Maximum tool length 24”
Maximum tool weight 110 lbs
GENERAL
Power requirement 208 + 10% /3 phase / 60KVA
Machine weight Approx 44,000 lbs
Dimension L x W x H 185”x197”x195”
STANDARD TOOL HOLDER
OD tool holder 1 ¼” OD shank
FANUC Oi-TD CONTROL:
Fanuc AC α servo drive & motors
Front memory card slot
10.4” color LCD monitor
640 M (256 KB) Part program memory
400 Set register program no
Oil/water separator
64 Sets tool offset
Auto power off
Custom Macro B
Canned cycle
Run hour and parts counter
RS-232 interface
Skip signal G31
Tool life management
Multiple language support
Servo HRV3 control
3 color cycle lights
Operation & maintenance manuals
STANDARD ACCESSORIES
Auto lubrication with pressure detection sensor
Air gun & Coolant gun
C3 class ball screws with pretension on all axes
Internal florescent light
Oil type spindle chiller
Oil Skimmer .
Chip conveyor
Coolant tank
Chips cart
Door interlock
Enclosed splash covers
Electric cabinet heat exchanger
Precision leveling kit
High intensity work light
Hydraulic system
M code controlled air blower
M code automatic power off
Maintenance tool kit
Water spray gun
Way covers for all axes
Tool holder CT-50
Table lubricant oil cooling unit
Anchor bolt & tools and tool box
Operation manual and spare part list
4-Jaw manual chuck
