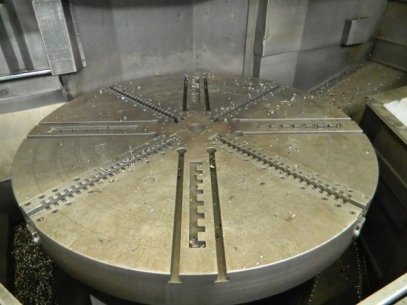

Job Gros Rochester diameter - scale rotation: 2100 mm - Facing: 2200 mm Maximum distance between the face plate and mounting surface of the slide: 1510 mm Maximum height of the working surface of the face plate to the lower edge of the supportes: 1370 mm Max stroke of the slide: 1000 mm Max workpiece height: 1260 mm Largest workpiece weight: 20000 kg largest cutting force / the continuous average / on Qürbalkensupport: 50000 N largest Qürschnitt of Drehmeisselkörpers: 40x40 mm Qürbalken largest Qürbalkenhub: 800 mm adjustment of Qürbalkens: 480 mm.min-1 faceplate diameter of the faceplate: 2000 mm Infinitely variable speeds in two steps for right and left rotation: 1 min-1 1 Level: 1.6 - 40 2 Level: 6.5 to 160 Maximum torque on the face plate: 42 080 Nm output of the main DC motor: 63 kW positioning the face plate: each 0,001 Maximum speed of the face plate while positioning: 1.min-1 spindle largest grinding wheel diameter: 150 mm Maximum diameter of the grinding wheel, which was supplied as an optional accessory: 250 mm hole diameter of grinding wheel: 51mm Grösstbreite the wheel: 36 mm Maximum speed: 3312 U.min-1 Grösstdrehzahl the wheel: 2450 U.min-1 rotation of the spindle as seen by the motor: clockwise drive of the Rotary tools speeds of rotary tools in three rows of programmable [...Technical data truncated]
