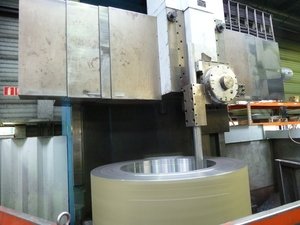

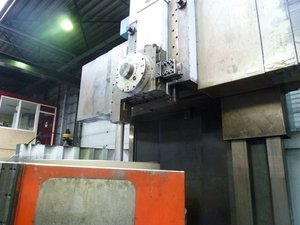

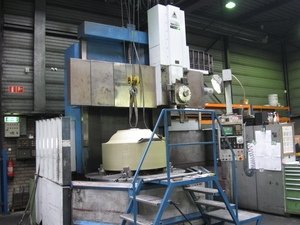

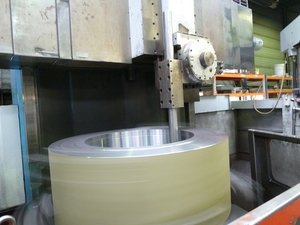

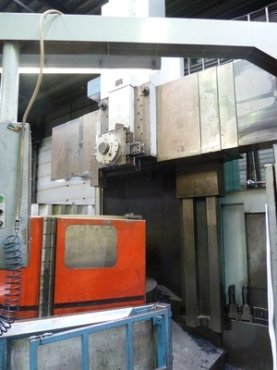

CNC Vertical lathe (VTL) with 4-station turret head.
Specifications:
Max. turning diameter 2200 mm;
Distance from faceplate to turret head max. 1950 mm;
Z Axis stroke 750 mm;
Workpiece diameter max. 2200 mm;
Workpiece height max. 1800 mm;
Workpiece weight max. 16000 kg;
Cutting force max. 45000 N;
Crossrail vertical travel in steps max. 1250 mm;
Faceplate diameter 2000 mm;
Faceplate speeds in 2 steps 1.6 - 160 rpm;
Torque at the faceplate max. 43720 Nm;
Main spindle drive 63 KW;

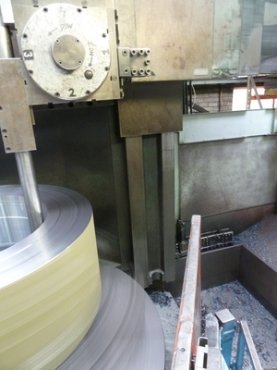

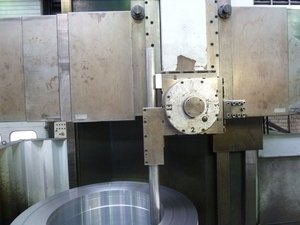

Turret head with 4 automatic tool positions;
Size of machine 4520 x 3905 x 4910;
Weight of machine 33000 kg;
Condition: Very good working condition;
Can be inspected under power;
