48" CNC VTL in Good Condition!! Inspect Under Power.

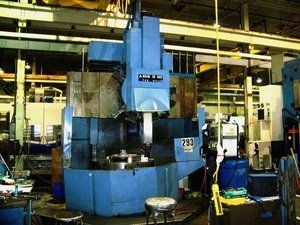

1995 TOS Hulin SKQ-12 NC Vertical Turning Center
With Fanuc 0-T CNC

Specifications:
Table diameter…………………………… 1200 mm (48”)
Swing (max.)……………………………… 1500 mm (59”)
Turning height (max.)…………………… 900 mm (35”)
X travel of rail head ram………………… -100 mm to 800 mm (35”)
Z travel of rail head ram………………… 1000 mm (39”)
Vertical travel of cross rail……………… 400 mm (15”)
Table load………………………………… 11,000 lbs
Table drive………………………………… 50 HP
Table speeds…………………………… 10 to 250 RPM
Automatic tool changer capacity……… 12 tools
RAM cross section……………………… 190 mm x 190 mm (7.2”x7.2”)
Feedrate (max.)……………………….... 2000 mm/min (79 IPM)
Rapid traverse rate……………………… 10 m/min (394 IPM)

Equipped With:
GE Fanuc 0-T CNC
AC Servo drives
Flood coolant
Chip conveyor
Splash guard

Comments – This machine offers Heavy Duty construction

This machine is offered in running condition, prepared for shipment and loaded on a truck. The machine can be inspected under power.
