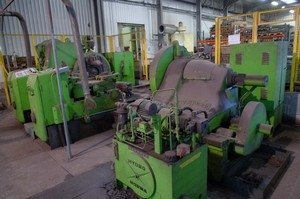

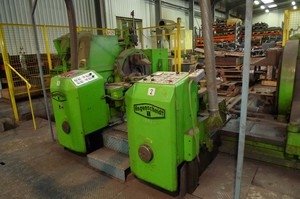

HEGENSCHEIDT Rail – Way Lathe
- Make : Hegenscheidt - Germany
- Typ : 42,2
- Age : 1974
- Mach.No. : s/n100 363
- Height of centers : 600
- Rail track gauge : 1.435
- Max. wheel tread Ø. : 1.099,5
- Min. wheel tread Ø. : 600,0
- Max. axle length wheel set: 2.850
- Min. axle length wheel set: 2.050
- Min. clamping Ø. : 600
- Face plate Ø. : 1.000
- Speeds 6 – 9 – 12 – 15 rpm
- Ø. Of headstock quills : 260
- Power. 400 V / 65 kW
- Weight. Ca. 40 ton
- Incl. sjablone copy attachment
- Incl. extra jaws
- Incl. Hegomatic support 12 mm
- Incl. auto. cycle – measuring steps
- Ex. DB / railway
