1.2. Basic information

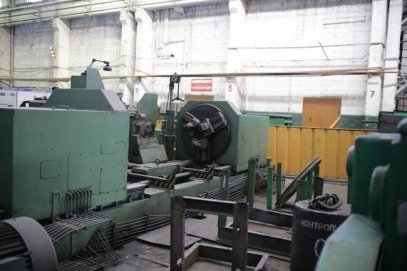

1.2.1. Facilities for manufacturing of mounted wheels

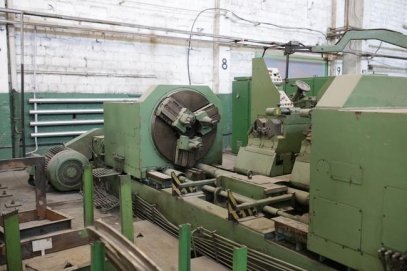

Ordinary machine
Width of track 1435-1676 mm
Length of axis 1640-2800 mm

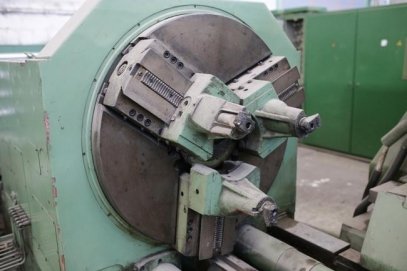

Diameter of clamp 540-1050 mm
Diameter of turning of the wheels 700-1120 mm
Special machine
Width of track 900-1524 mm
Length of axis 1210-2190 mm
Diameter of rolling of the wheels 500-1120 mm
Diameter of clamp if use special clamps 470-950 mm
1.2.2. Kinematic values
Rotations of the spindle
Fast rotation of the spindle 6/9/12.5/19 rpm
Slow rotation of the spindle 5/7.5/10/15 rpm
Quantity of stages of rotations 4
Feeding of cross slides
Transversal 0.45-4.5 mm/rotation
Lengthwise 0.45-5.0 mm/rotation
Quantity of stages of the feeds 9
Feeding of copying slides
Quantity of stages of feeds 9
1.2.3. Speeds of setting motions
elevator 350 mm/min
spindle head 2200 mm/min
spindle tube liner 350 mm/min

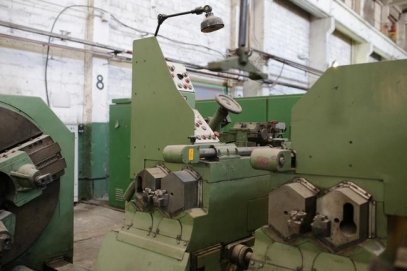

Cross slides
transversal 1500 mm/min
lengthwise 1700 mm/min

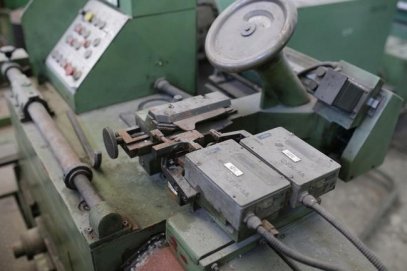

Copying slides
transversal 1500 mm/min
incisal lever 1320 mm/min

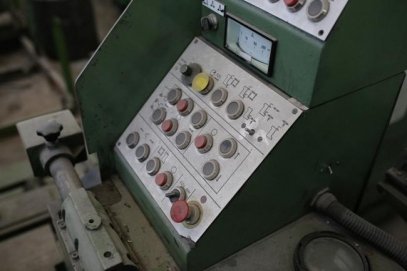

1.2.4 Electric motors
Main drive 55/45/35/27 kW
1480/980/735/480 rpm
elevator (1 pcs) 2.2 kW 1500 rpm
moving of spindle heads (1 pcs) 7.5 kW 1500 rpm
moving of spindle tube liner (1 pcs) 1.5 kW 1500 rpm
clamp (1 pcs) 1.5 kW 1500 rpm
hydraulics and lubrication of spindle 1.5 kW 1500 rpm
heads (2 pcs)
setting strokes of slide (4 pcs) 1.1kW 3000 rpm
1.2.5 General data
1.1. Size 8500 x 3700 x 1900 mm
1.2. Netto weight 40.500kg
1.3. Power /total/ about 80 kW
