plate width: 2500 mm
plate thickness: 16 mm
smallest sheet thickness: 6 mm
Number of Straightening rolls: 11 Stück
roll diameter: 180 mm
straightening roll diameter: 180 mm
straightening feed: 10-16-20 m/min
bending speed: 10 m/min
total power requirement: 75 kW
Weight approx.: 56 t
space requirements approx. LxWxH: 5,0x2,5x4,0 m

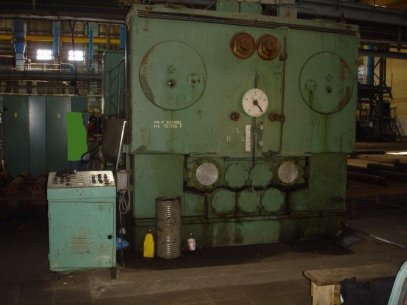

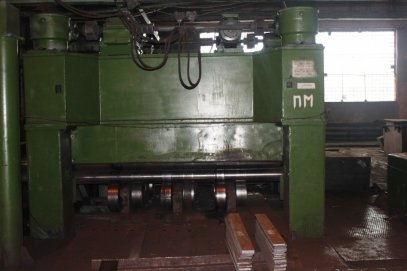

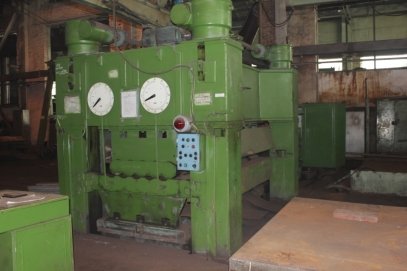

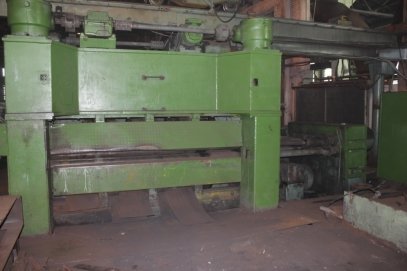

cold sheet metal levelling machine
techn. dimensions:
- max. throughput between the end switch: 2650mm
equipment:
- 6 pcs roller conveyors for intake/feed and outlet/ run-out, model U-beam construction with each 1 gear motor per roll conveyor band approx. 6,0 kW, chain drive for all rolls, rolls dia.= 190mm
roll conveyor description:
1 x roller conveyor: 2 pcs. rolls, 2500mm length, roller distance center 800mm, size (W:2,8xD:1,15xH:0,77m)
3x roller conveyor: 3 pcs rolls, 2500mm length,
roller distance center 800/800 mm
size W:2,8xD:1,85xH:0,75m
1x roller conveyor: 4 pcs rolls, 3x2800mm + 1x2330mm length, roller distance center 800/800/550 mm / size W:2,8xD:2,4xH:0.77m
1x roller conveyor: 6pcs rolls,5x2500mm+1x2330mm length,roller distance center 800/400/400/280/270mm, size W:2,8xD:2,4xH:0,77m
