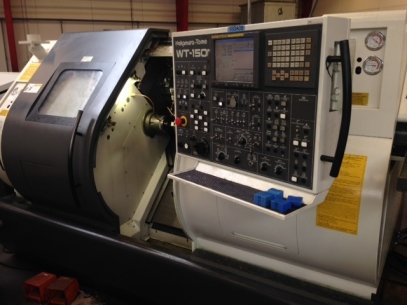

1 off CNC-Turning Centre
NAKAMURA model WT-150 MMY
Mfg. year 2008

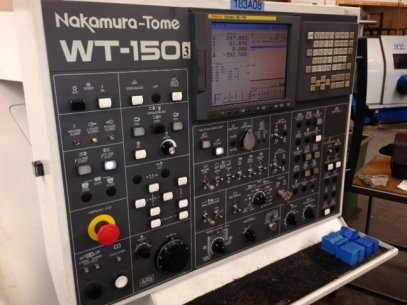

Fanuc 18iTB control
Spindlemotor left side 15 kW
Spindlemotor right side 11 kW
max. spindlespeed 5.000 rpm, left side
max. spindelspeed 5.000 rpm, right side
Standard turningdiameter 190 mm
Barcapacity 51 mm
2x C-axis
2x 12 stations turrets, all stations for driven tools
24/24 stations index
Driven tools 3,7 kW, max. 6.000 rpm
Y-axis +/- 35 mm upper turret
Partscatcher type A left side
Partscatcher type G right side + partscatcher

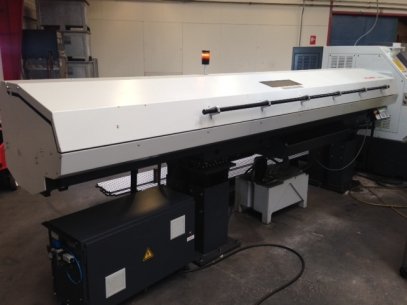

Interface for barfeeder
Coolant and air through right spindle
Specifications:
1x Hainbuch collet chuck for BZI 65 collets, left spindle
1x 3-jaw chuck Schunk diameter 165 mm, right spindle
2x high pressure pumps, 5/15 bar, Brinkmann
Swarfconveyor
