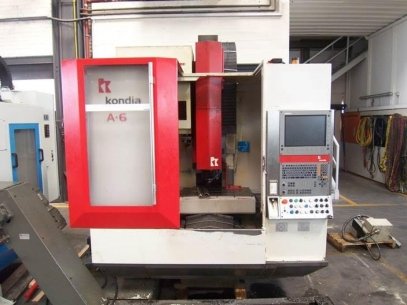

The vertical machining center It has glass scales on the X / Y / Z, 12000 rpm, tool change arm in arm, 20 ISO 40 positions, high pressure through the spindle 20 bar.
Chip conveyor and provision for Renishaw infrared probe.
Specifications:
Technical specifications
Brand And Model Kondia A-6
Year of construction 2006
Spindle nose ISO 40
number Giri 12000
X-axis stroke 600
Y axis stroke 400
Z-axis stroke 510

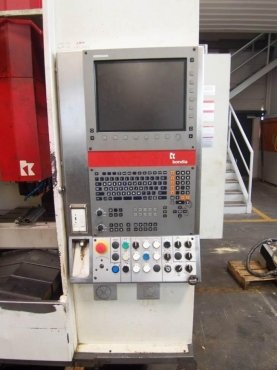

CNC model HEIDENHAIN iTNC 530
number Tools 20
Divider? Table 4 axis chuck continuous diam. 160
Pallet size (Table) 800x400
Number Axes Controlled 4
