WEMAS, VZ 1020, VERTICAL, MACHINERY CENTERS

Condition:Used
Category:MACHINERY CENTERS
Type:VERTICAL
Manufacturer:WEMAS
Model:VZ 1020
YOM:2011
Location:Netherlands, BABBERICH
Price:On request
Stock No:8634
Control:CNC
ID:AS29800

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

3-axis CNC machine (VMC)
Wemas - VZ 1020 Quick
HeidenHain iTNC530

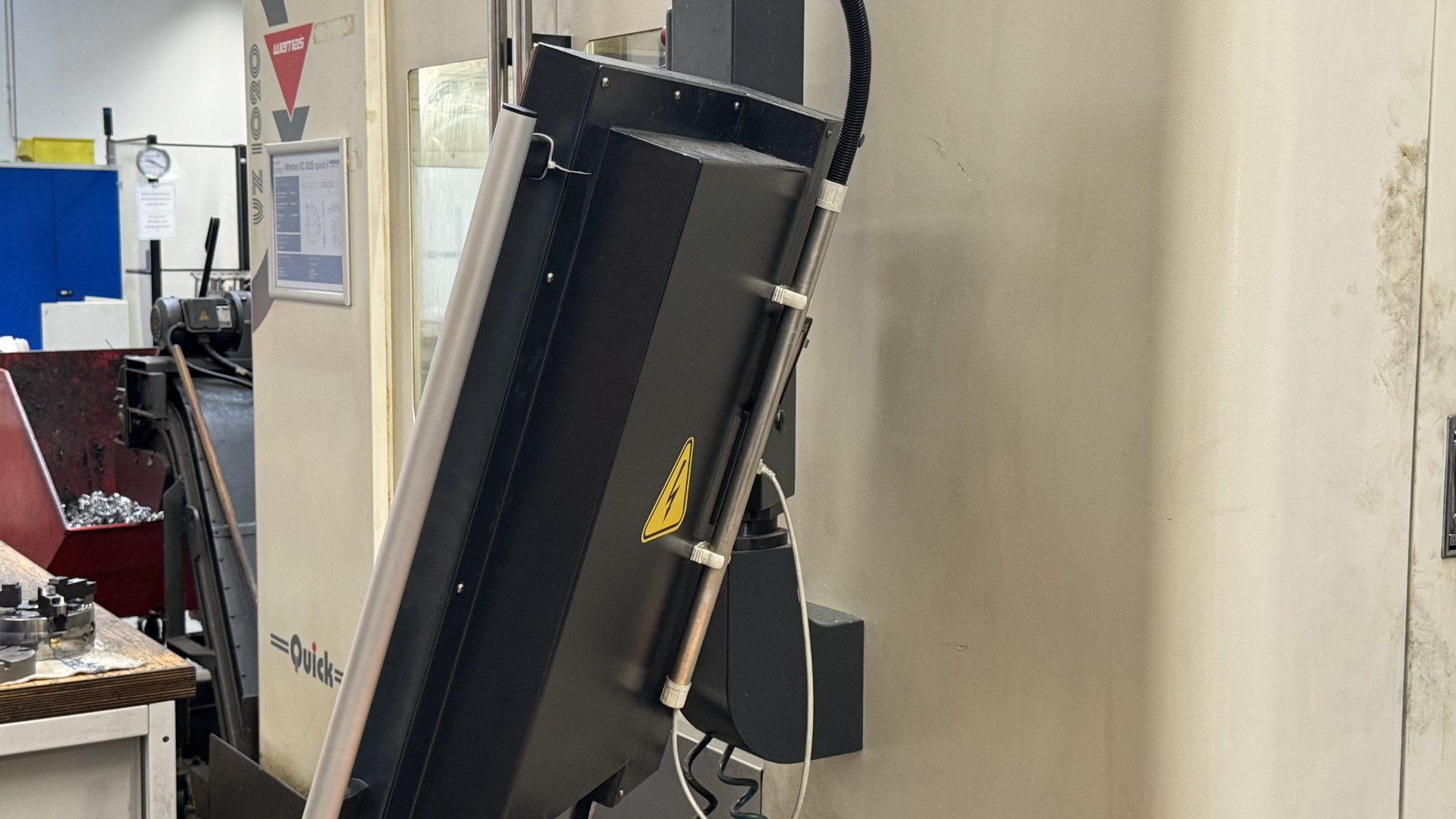

Heidenhain HR-410 Handwheel

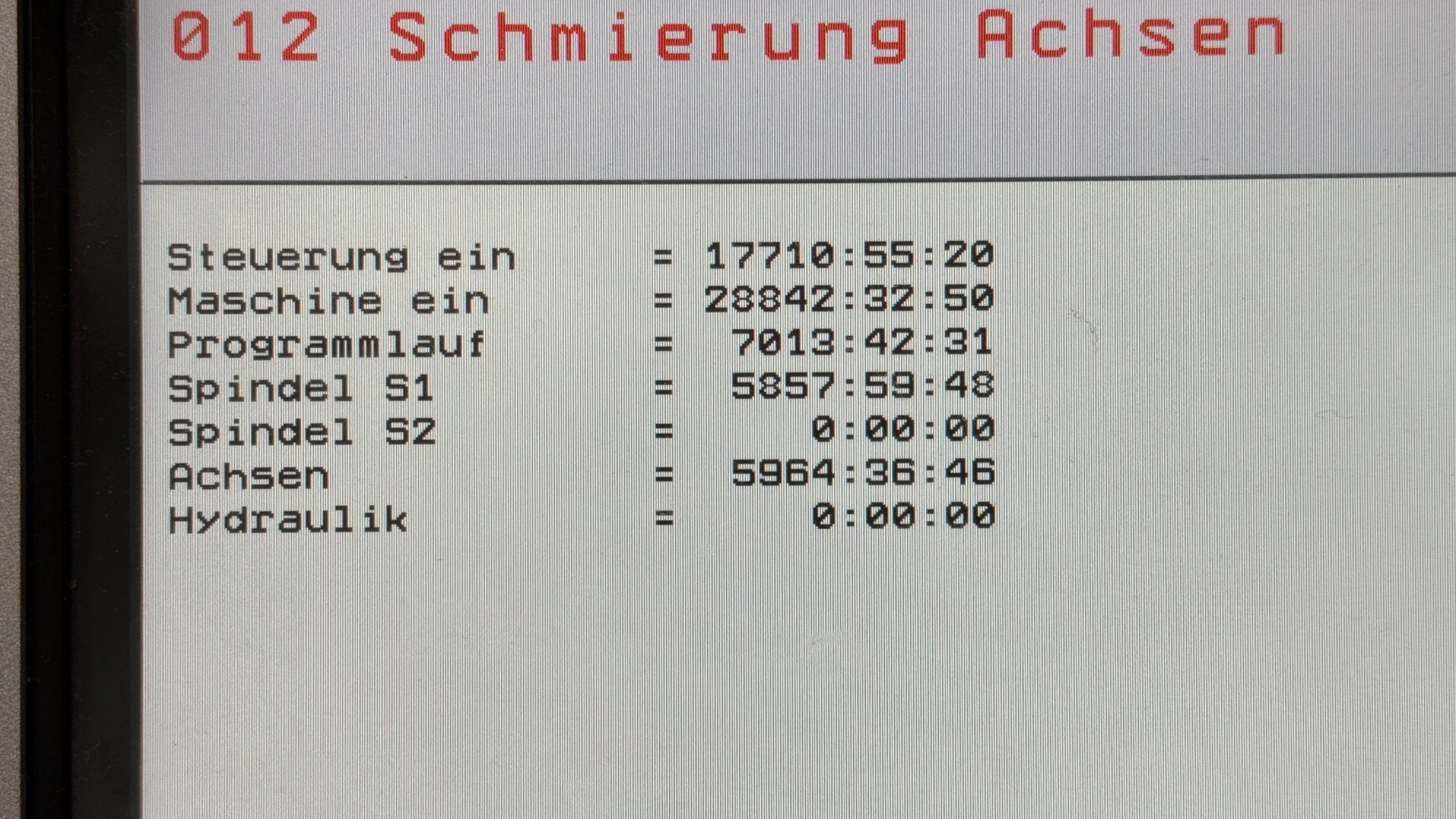

Spindle hours 5900 (02.2024)
Needs attention ballscrew X-Axis
Needs attention front door guiders

X - Travel: 1020mm
Y - Travel: 600mm
Z - Travel: 650mm
Table Length: 1100mm
Table Width: 600mm
Table load: 500
Feed rate X-Axis: 36000mm/min.
Feed rate Y-Axis: 36000mm/min.
Feed rate Z-Axis: 36000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 15kW
Speeds / ranges: 10000Rpm
ATC / revolver: 30
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3500mm
Width: 2100mm
Height: 2100mm
Weight: 5900kg

Specifications:

3-axis CNC machine (VMC)
Wemas - VZ 1020 Quick
HeidenHain iTNC530
Heidenhain HR-410 Handwheel
Spindle hours 5900 (02.2024)
Needs attention ballscrew X-Axis
Needs attention front door guiders

X - Travel: 1020mm
Y - Travel: 600mm
Z - Travel: 650mm
Table Length: 1100mm
Table Width: 600mm
Table load: 500
Feed rate X-Axis: 36000mm/min.
Feed rate Y-Axis: 36000mm/min.
Feed rate Z-Axis: 36000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 15kW
Speeds / ranges: 10000Rpm
ATC / revolver: 30
Coolant through spindle / Bar:20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3500mm
Width: 2100mm
Height: 2100mm
Weight: 5900kg

Dealer name:

Mach4Metal Netherlands, Babberich
