Description:

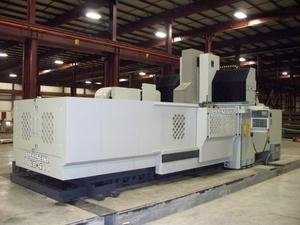

Amera-Seiki, VB-5, CNC bridge-center, 204"x79"x 35+8", 30HP, 6000rpm, 2-speedgear, 32atc, CT-50, CTS-300PSI, CC, coolant filtration, other additional options!, Fanuc-0iMD, 200mm riser, Available for delivery August, 2012, New
Specifications:
AMERA-SEIKI VB-4 BRIDGE MILL
TRAVEL;
Longitudinal Travel (X) 165”
Cross Travel (Y) 79”
Headstock Travel (Z) 35”
Distance Between Columns 78.75”
Spindle Nose to Table 2-37”
TABLE;
Length 165”
Width 65”
T-Slots Size .866”
Center Distance 6.69”
T-Slots Number 9
Max Table Load 17,640 lbs.
SPINDLE ;
Spindle Speeds 30~6000rpm
Spindle Nose CAT 50
MOTORS;
Spindle Motor 30 HP
Drive Motor X Axis 12 HP
Y Axis 9 HP
Z Axis 9 HP
CONTROL;
Fanuc 0i-MD, w/10.4 Color Screen, Manual Guide I
TOOLING;
Max Tool OD 5”
Max Tool Length 14”
Max Tool Weight 44.1 lbs
Tool selectionBi-Directional
ATC Changer 32 Tools
GENERAL;
Machine Dimensions433”x169”x176”
Net Weight76,000 lbs.
Base Size472” x 197”
FEEDRATE;
Rapid Traverse (X/Y/Z) 472 ‘’/ min.
Cutting Feedrate 1~ 393.70’’/ min.
STANDARD OPTIONS;
30 HP Motor
2 Speed ZF Gear Box
Oil Coolant thru ballscrews
Chip Conveyer
Oil Skimmer
Thru Spindle Coolant- 300 PSI.
Extra Coolant System, 105.6 Gallon, w/paper filter (21gal/min)
Dimensions:
490" x 183" x 178"
Weight:
117,000
