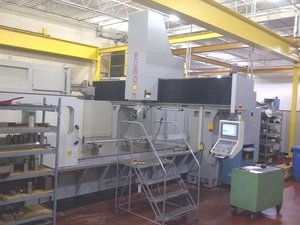

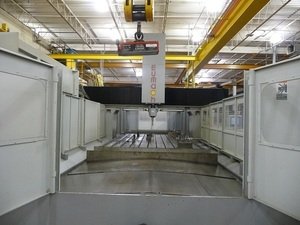

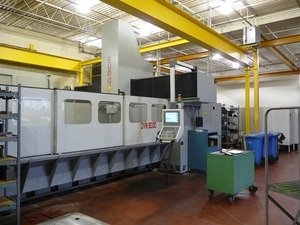

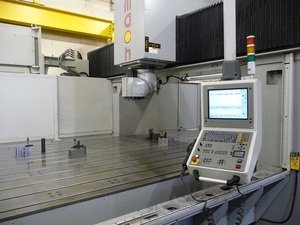

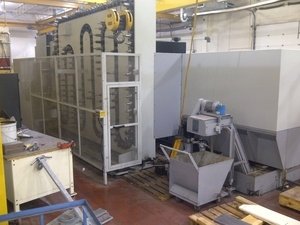

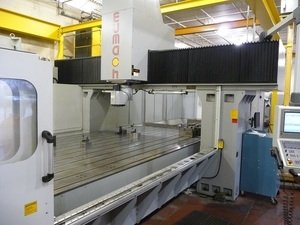

205" X 122" X 27" Eumach MV-5030 Double Column CNC Bridge Type Machining Center (2007)

205" X 122" X 27" Eumach MV-5030 Double Column CNC Bridge Type Machining Center (2007)

Specifications (Preliminary)

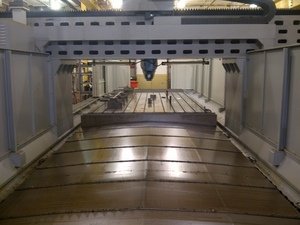

Table Size: 102.36" x 197"
X-Axis Travel: 205"
Y-Axis Travel: 122"
Z-Axis Travel: 27.5"
Distance Between Columns: 119.29"
Spindle Speed: 0 - 3500 RPM
Spindle Taper: Cat 50
Spindle Motor: 30 HP
Spindle Ram Size: 14.96" Square
Spindle Nose to Table Top: 5.59' - 33.15"
Tool Changer Capacity: 180
Rapid Traverse Rates (X & Y / Z): 480 / 393 IPM
Rapid Traverse Rates (X & Y / Z): 480 / 393 IPM
Table Load Capacity: 44,000 lbs.

Equipped With:

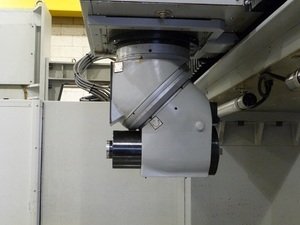

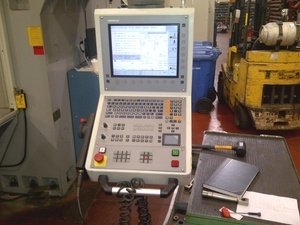

Heidenhain iTNC 530 CNC Control, 15" Color LCD, Vertical and Horizontal Machining Capability, Emana VGCI OP-4 Milling Head (2.5 Degrees), Heidenhain Linear Scale Feedback System, Coolant Thru Spindle (290 psi), Heidenhain TT-130 Auto Tool Length Measurement, Heidenhain TS-220 Touch Probe, 180 Tool Magazine, Three Color Tower Light, Remote Manual Pulse Generator
