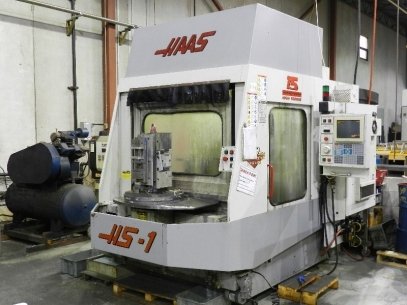

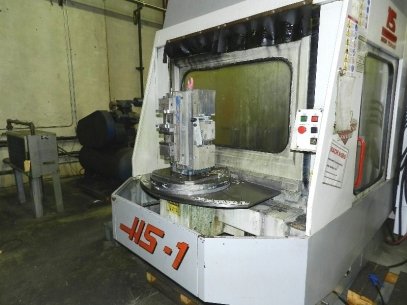

1996 HAAS HS-1RP with Full 4th Axis Horizontal Machining Center

Haas Model HS-1RP Full 4th Axis Horizontal Machining Center
16" X 16" pallet Haas Model HS1 4-Axis Horizontal Machining Center

2) 16" X 16" Pallets, 40 Taper, 24 ATC, 15 HP, Haas CNC

Specifications :

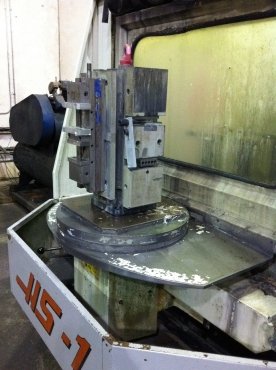

Pallet area (2-pallets): 16" X 16"
X-Axis travel: 18"
Y-Axis travel: 18"
Z-Axis travel: 18"
B-Axis rotation increment: 1 degree
Taper in spindle: No.40 CAT
Spindle speeds: 7,500 RPM (max.)
Feeds: 710 IPM
Spindle drive motor: 15 HP High Torque

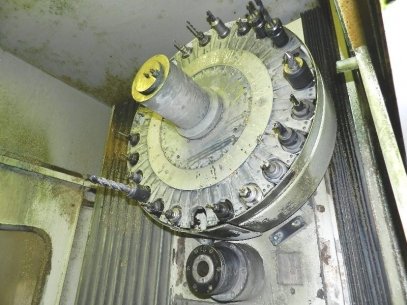

Automatic Tool Changer: 24 Tools
CNC Type: Haas
Currently in operation: Yes

Equipped With :

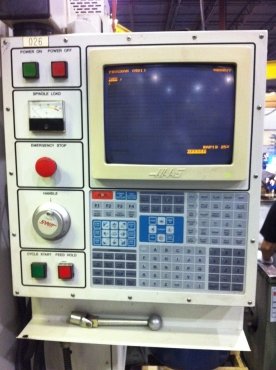

Haas CNC Control
Brushless Servos
Full 4th Axis
