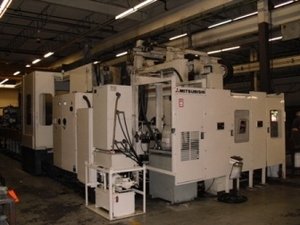

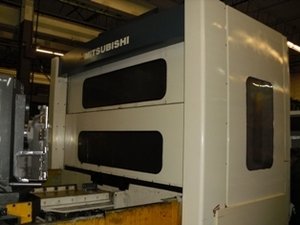

Mitsubishi M-H80E, 1998, 49.2"X 39.4"Y 33.5"Y, 6000 RPM, 37.5 HP

General Specifications As Per Brochure

Travels:
X-Axis Travel: 49.2"
Y-Axis Travel: 39.4"
Z-Axis Travel: 33.5"
B-Axis: full fourth 360,000 degree
Pallet Size: 31.5" x 31.5" Table
Load Capacity: 4,400 Lbs.
Rapid Travers Rates: 1574 IPM
Spindle Nose: Cat 50
Spindle Speeds: 35 - 6,000 RPM
Spindle Motor: 37.5 HP
Twin Tool Magazine Capacity: 238
Maximum Tool Diameter: 9.4" / Length: 19.7"
Machine Dimensions (Approx.): 50' x 16.5' x 12'
Machine Weight (Approximately): 33,000 Lbs
Equipped with (must be verified by buyer):
Twin Chip Augers
(1) Chip Conveyor: 142" x 48" x 61", 2000 Lbs.
(1) Coolant Tank

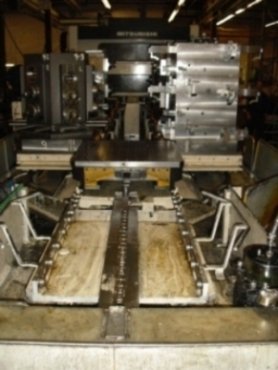

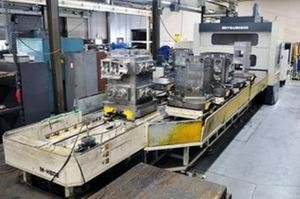

(1) Ten Pallet Changer: 8000 Lbs.

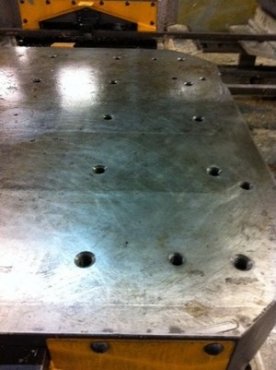

(10) Pallets: 31.5" x 31.5" w/ Hole Pattern
(2) Tool Magazine Holder: 6000 Lbs. Each w/ Robotic Bridge Loader &
Enclosure

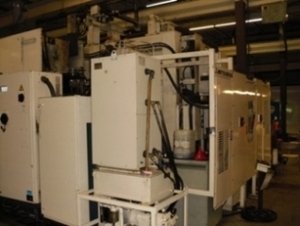

(1) Hydraulic Unit & Daikin Oil Chiller: 39" x 27" x 83", 1000 Lbs.
Thru Spindle Thru Coolant: (1) Sumijet x Hi Pressure &
Filter System: 1000 Lbs.

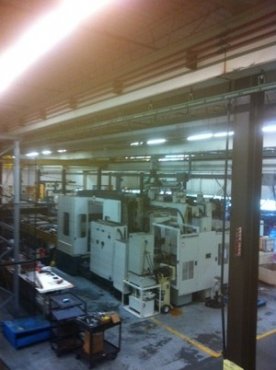

Total Weight for Flexible Manufacturing System Approx. 52000 Lbs.

Customer paid over $1,000,000 for this new
Base unit NEW: Over $600,000
