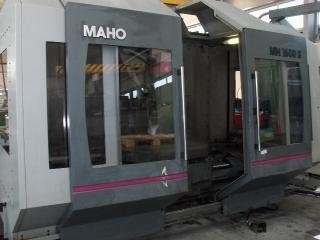

manufacturer MAHO
type MH 1600 S
built 1992
travels X-Y-Z 1.600 x 800 x 800 mm
B-axis 360° - 0.001°

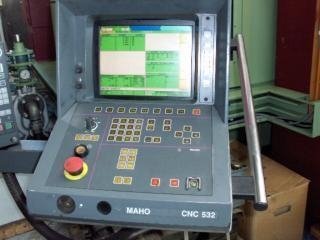

control CNC 532

working spindle unit
tool taper SK 50 / DIN 69871
power boring/milling 22 kW on 100% ED
speed 20-4.000 min-1
number of gear steps 2

rotary table unit
clamping size 1.250 x 980 mm
table load max. 1.500 kg

tool magazine
shelf magazine WERO 60 places
max. tool weight 20 kg
max. tool length 400 mm
max. tool diameter 100 – 230 mm

Accessories: coolant equipment with paper band filter, internal coolant through spindle, elctronical handwheel, chip conveyor, working space covering

-
