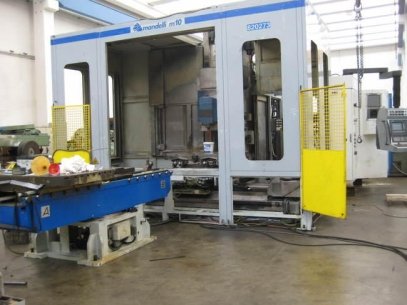

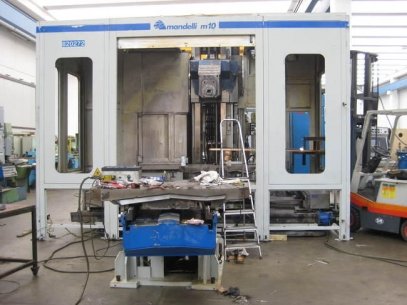

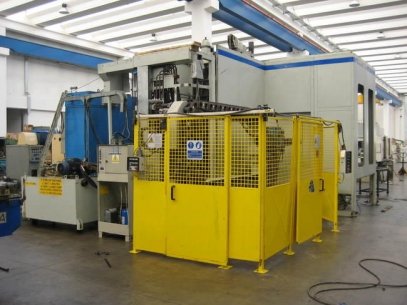

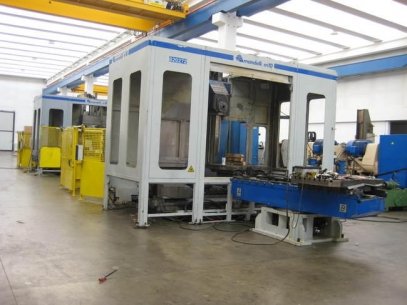

Mandelli M10
2 pallets 1500x1000
1998

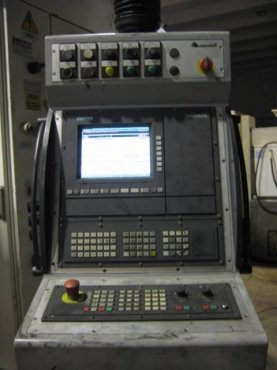

Siemens 840
U25 head (automatic 0-90°)
Spindle 25kW / ISO 50 / 4000 rpm / rapids 18 m/min
X 2200 (long)
Y 1500 (vert)
Z 1400 (trasv)
B 0,001° (pallet)
max piece diameter 2000mm
Pallet
2 pallet
1500x1000
ISO 1000
max load 4500 daN
rotation sped 0,0012 - 8 giri/min
Clamping torque 21000 daN
Tools
60 tools
ISO 50 (Din 69871-B)
max tool diameter 140mm
(max tool diameter 400mm with adjacent positions free)
max tool length 600mm
Max tool weight 35 daN
Coolant: max 25 bar / 40 l/min
chiller
Machine can be inspected under power in our warehouse (Note: no toolchanger, no palletchanger because mechanical alignment missing)
