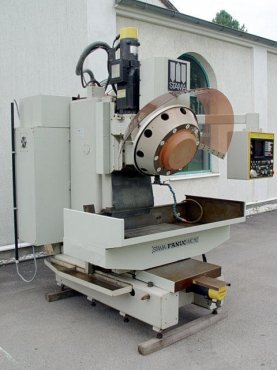

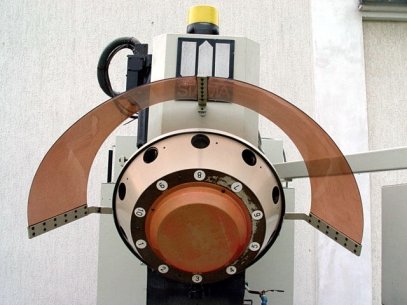

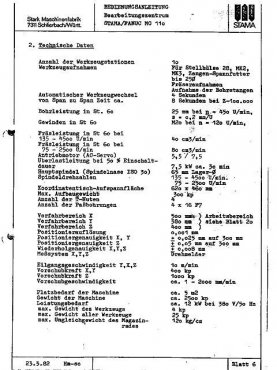

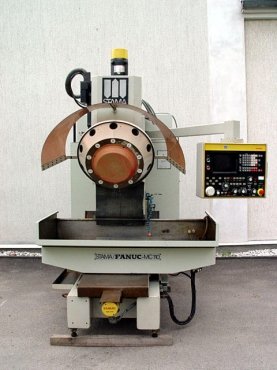

CNC Sinumerik 6M / B turret: 10 workstations: 1983 Overall dimensions (W / D / H): 2,320 x 2,550 x 2,740 mm Weight: 2.500 Kg tool magazine with 10 tool stations, left / right switching for SK 30 tool holders (ISO 30 for setting sleeve, MK2, MK3, Pliers chuck to 25 mm, mill holders, holder for boring) tool change in 8 seconds (from chip to chip) Drilling capacity in St 60: 30 mm threads in St 60: M20 Milling capacity: 40 cm / min Drive Motor 5.5 kW main spindle: 65 mm spindle: 380 mm Spindle speeds: 75 - 4500 r / min 4 grooves clamping table: 700 x 380 mm Travel X 500 mm Y 380 mm Z: 400 mm positioning resolution of 0.001 mm Measuring system XYZ: resolvers rapid traverse XYZ: 10 m / min feed motor XY 400 kp thrust Z 750 kp Working feed: 1-2000 mm / min, directly programmable power requirement: 12 kW at 380V/50Hz manuals and documentation
