The new benchmark in machining speed
The machine is built in a portal design. The base is made of solid polymer concrete which guarantees optimal absorption of machining and mass energy. The moving parts are mounted on highly stiff, frictionless linear-roller-guide ways. This provides a highly durable and stick-slip-free motion for all running conditions. The machine tables are made of a well ribbed cast iron construction in which all transmission elements like supporting surfaces for guide carriage and the linear drive are integrated.

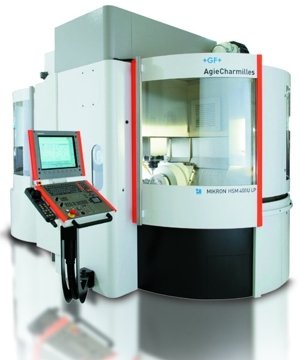

For the MIKRON HSM 400U LP there is a choice between different pallet-chuck systems. Those chucks are integrated in the table construction.
A weight optimized cast slide has been developed for the z-axis in order to enable a high cutting capacity when machining.
Due to the box-form and good ribbing the spindle slide grants highest machine accuracy. The rotary tilt table has been developed by Mikron using optimized direct drive motors for the B and C axes. As a result true 5-axis simultaneous high-speed machining is granted.
Specifications:
Key Points
* Rugged monoblock portal design with a compact foot print
* Powerful integral spindles with vector control provide high torque at low speeds
* Integrated automation on smallest footprint
* Laser tool measuring standard
* High resolution glass scales on all axes
* Excellent access to working area for operator or crane loading
* Fast iTNC530 control
* Polymer concrete construction
* Linear motors
