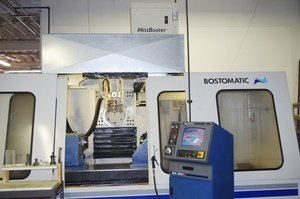

40.10" x 22.05" x 22.05" Bostomatic Model BD 605 5 Axis CNC Vertical Machining Center (1991)
Specifications:
40.10" x 22.05" x 22.05" Bostomatic Model BD 605 5 Axis CNC Vertical Machining Center (1991)
X Axis Travel: 40"
Y-Axis Travel: 22"
Z-Axis Travel: 22"
B-Axis Spindle-head rotation: (pivot) around Y-axis, -10/ Degrees (CCW) to +190 Degrees (CW).
Spindle Speeds: 8000 RPM
Spindle Taper: HSK63
Main Motor Drive: 10/13 HP
Equipped With:
Bostomatic CNC Control, Nikken 250LF Rotary Table, High Pressure Coolant Thru Spindle, MistBuster Hood and Mist Collector, Marposs Tool Setter, Machine Comes with 2 New Spindles and Draw Bars, Glass Scales on X and Y Axes, Approximately 7,000 Hours on Machine
