CHEVALIER, 3072VMC, VERTICAL, MACHINING CENTERS

Condition:Used
Category:MACHINING CENTERS
Type:VERTICAL
Manufacturer:CHEVALIER
Model:3072VMC
YOM:2001
Location:United States, Wisconsin
Price:-
Stock No:-
Control:CNC
ID:AS13506

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

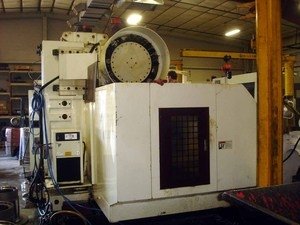

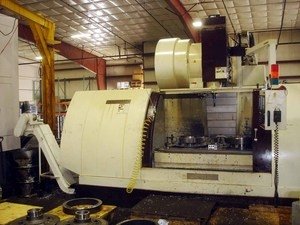

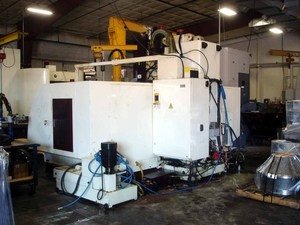

Chevalier Model 3072VMC Geared Head 3-Axis CNC Vertical Machining Center

Specifications:

Chevalier Model 3072VMC Geared Head 3-Axis CNC Vertical Machining Center

New: 2001

EQUIPPED WITH:

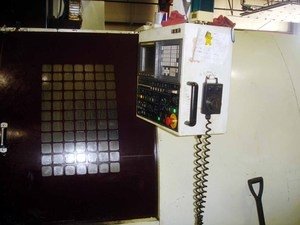

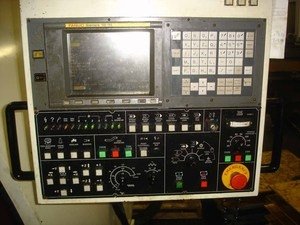

Fanuc 18M CNC Controls. Geared Head. 24-Position Automatic Tool Changer. Thru Spindle Coolant. Chip Conveyor. Spindle Oil Chiller. Automatic Lubrication System.

SPECIFICATIONS:
X-Travel: 72.8"
Y-Travel: 31.5"
Z-Travel: 30"
Table Size: 78.5" x 28.5"
Spindle Drive: 30 HP
Spindle Speeds: 40-4000 RPM
Spindle Taper: CT50
Maximum Table Load: 5500 lbs
Spindle Nose to Table: 7.1" - 37.1"
Rapid Traverse Rate X-Axis: 590 IPM
Rapid Traverse Rate Y-Axis: 590 IPM
Rapid Traverse Rate Z-Axis: 472 IPM
Cutting Feed Rate: .04 - 300 IPM
Approximate Floor Space: 117.3" x 200" x 122.4"
Approximate Weight: 32,000 lbs

Weight:

32000 lbs

Dealer name:

Adams Machinery Co. United States
