travels, feeds of linear axis
travels X(longitudinal)-Y(cross)-Z(vertical) 700 x 550 x 500 mm
max. feed rate X, Y, Z - axes 0 – 10.000 mm/min
max. rapid rate X, Y, Z - axes 30 m/min
clamping table:
table size 900 x 550 mm
max. table load 600 kgs
milling spindle:
tool taper SK 40
spindle speed 15.000 min-1
tool changer:
magazine plate
number of tool places 30
max. tooling diameter 80 mm
at 2 free neighbour places 140 mm
max. tool length 300 mm
max. tool weight 6 kgs
chip –to-chip time 6 s
tool changing through pick-up of working spindle,

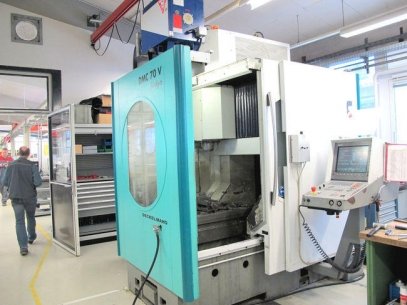

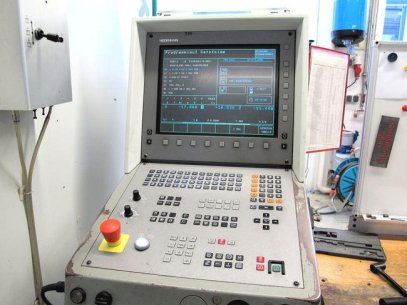

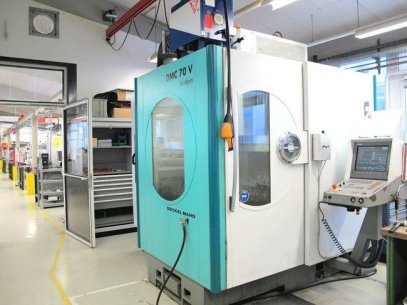

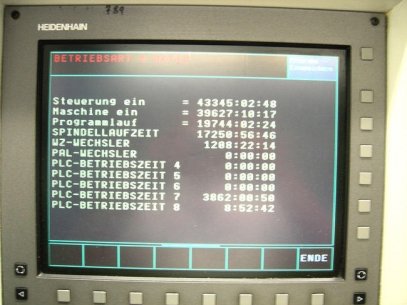

CNC-control HEIDENHAIN TNC 426
Dimensions: Length/width/high 4,5 x 4 x 3,2 m
weight ca. 10 t
connecting power 400 V, 50 Hz
