SPECIALPRICE***UNUSED MACHINE WITH PARTS WARRANTY***20% DISCOUNT

x-travel 1020 mm
y-travel 560 mm
z-travel 600 mm
table surface area 1120x560 mm
t-slots (width x number x distance) 5x18x100
table load 750 kg
distance spindle /table 135-735 mm

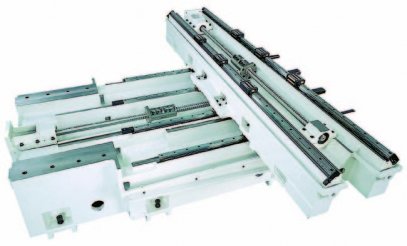

guideway type X/Y/Z X/Y: Linear, Z: Flach
X/Y/Z rapid traverse 24/24/18 M/min
feedrate 1-10000 mm/min
servo motor torque X/Y/Z 12/12/12 Nm

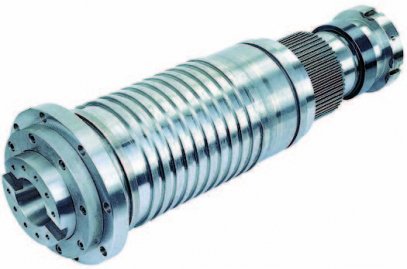

spindle speed 60-8000 RPM
tool taper SK 40
weight of tools max. 7 kg
power requirement 7.5/11 kW
weight of the machine ca. 7 t
dimensions of the machine ca. 2530x2820x2500 m

Accessories
CNC control Fanuc 0i-TC with Manual guide I
Paint colour: Ash grey/dark grey (RAL 7012) gloss

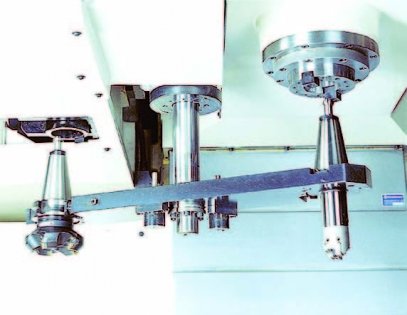

24 station arm type tool magazine and 24 sets pull
two manual wash down guns
halogen lamp
spindle blowing device
foundation bolts and pads
cooling system
heat exchanger
alarming lamp
thread chasing dial
technical documentation
chip conveyor
Cooling through spindle

-
