Description:

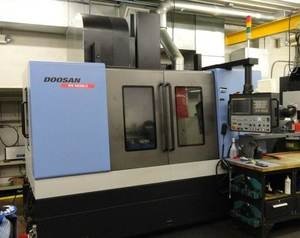

40" x 20" x 24" Doosan Model MV4020LS 4 Axis Vertical Machining Center (2008)
Specifications:
40" x 20" x 24" Doosan Model MV4020LS 4 Axis Vertical Machining Center (2008)
Table Size: 19.7" x 47.2"
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 24"
Spindle Speeds: 15000
Spindle Taper: 40
Tool Changer: 30 Position
Main Power: 30HP
Hours: 1700 cut, 2300 oper, 7800 power on
Equipped With:
Fanuc 21i-MB Control, 10" NSK Rotary Table ($ 2,950.00), Additional Tooling Available, Powerful 30 torque spindle motor, Direct drive spindle design, High precision spindle with two double-row cylindrical roller bearings, Spindle air blow(M14), spindle orientation, Spindle oil chiller, Thru-Spindle coolant 230 PSI, Spindle speed override 10 - 150%, Rigid tapping, Custom Macro B (User definable), Cam type Double Arm ATC 30 Tools, Portable manual pulse generator, Program and data protection key switch, AI Nano with look ahead and jerk control, Pendant operating console, Massive One-piece Meehanite cast iron bed, Large linear roller guides (Y,Z 45mm / X 35mm), Servomotors mounted directly to the oversized ballscrews, Metered piston distributor lubrication, Telescopic way covers, Chip trough coolant flush for chip disposal Base coolant with large separate coolant tank, Work light, 3 color tower signal light
