2003 FIRST MCV-1060 Vertical Machining Center 41" X 21" X 25"

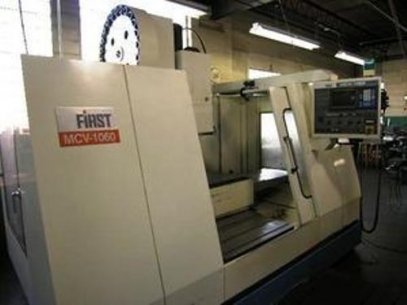

FIRST MCV-1060 Vertical Machining Center

Specifications:
FIRST BOXED WAY VMC
Model: MCV-1060
Table size: 51” x 20.4”
Travels: 41.7” x 21.6” x 25.5”
Cutting feed rate: 0.04 to 196 ipm
Rapid traverse rates: 472.4 ipm X & Y
Table load capacity: 1,760 lbs.
Spindle speeds: 120-6,000 rpm
Spindle motor: 20/15 HP
Spindle distance to table: 5.9” to 31.5”
Spindle center to column: 20.4” max
Spindle taper: Cat 40

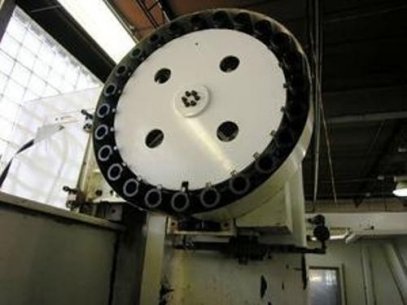

ATC: 24
Tool change time: tool to tool: 2.5 sec.
Tool change time: chip to chip: 5.5 sec
Max adjacent tool diameter: 3.9”
Max tool weight: 17.6 lbs.
Max tool length: 11.8”
Floor space required: 138” x 126” x 118” high, (which includes space for doors to open)
Weight: 17,160 lbs.

EQUIPPED WITH:

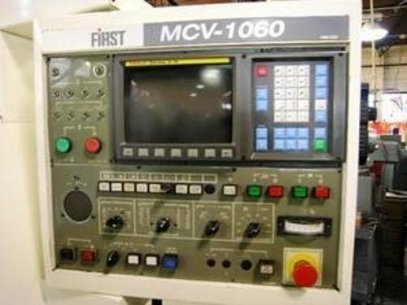

Fanuc OM controls with remote hand held controls
Full enclosures
Manuals
Belt driven spindle
