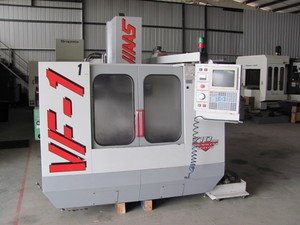

Haas VF-1B CNC Vertical Machining Center, New 1996, 2-Speed Gear Box

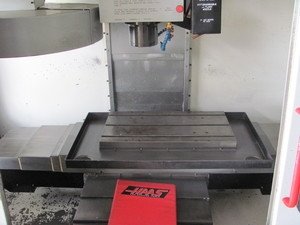

Table Size................................. 26" x 14"
Max Table Load........................ 3,000 LBS
Spindle Nose To Table Top........4" - 29"
X Axis Travel............................ 20"
Y Axis Travel.............................16"
Z Axis Travel............................ 20"
Rapdi Traverse Rate X,Y & Z ...710 IPM
Cutting Feed Rate.......................0- 500 IPM
Spindle Taper............................ CAT 40
Spindle Speeds.......................... 0 - 7,500 RPM
Spindle Motor............................20 HP
Tool Changer Capacity.............. 20 Station ATC
Max Tool Weight........................12lbs
Machine Weight..........................8,000 lbs
Approximate Dimensions........... 110" x 93" x 105"

Equipped With:

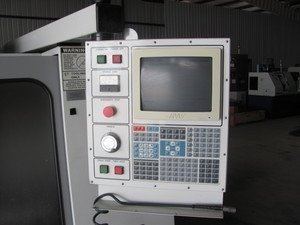

Haas CNC Control
2-Speed Gear Box
P-Cool
Chip Auger
4th Axis Ready
Macros
Rotation & Scaling
Brushless
Quick Code
Floppy
Rigid Tapping

110 x 93 x 105"

7100 lb
