MANUFACTURED IN 2005
INSTALLED IN 2006


PALLET SIZE.................................................................. 19.68" X 19.68"
MAX WEIGHT ON PALLETS........................................ 880 LBS
DUAL AXIS ROTARY TABLES..................................... 2
TRAVELS (X).................................................................. 29.92"
(Y).................................................................. 33.26"
(Z)................................................................... 24.01"
(B)................................................................... 220 DEG
(C)...................................................................360 (DEG)
TOOL CHANGER.............................................................60 ATC
TOOL CHANGER EXPANDABLE TO............................240 ATC (MAXIMUM)
TOOL CHANGE TIME.....................................................1.1 SECONDS
SPINDLE TAPER..............................................................#40
SPINDLE MOTOR.......................................................... 30 HP
SPINDLE SPEED............................................................. 12,000 RPM
RAPID TRAVERSE (X,Y,Z)............................................ 1969 IPM
CUTTING FEEDS........................................................... 1969 IPM
MACHINE WEIGHT....................................................... 33,000 LBS
FLOOR SPACE DIMS..................................................... 132" X 246" X 125"H (APPROX.)
CUTTING HOURS...........................................................4805 (PROTOTYPE WORK, ALUMINUM AND MILD STEEL)


EQUIPPED WITH:

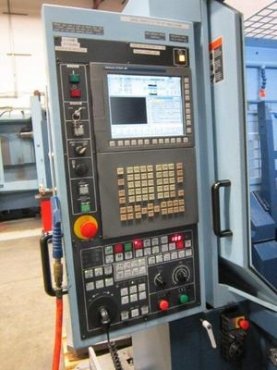

GTECH 30i FANUC (5) AXIS CNC CONTROLS
1000 PSI COOLANT THRU SPINDLE
TILTING TRUNNION TABLE
FULL 4TH AXIS (360,000°) ON B AXIS
SPINDLE TAPER BT
MICRO FINE CHIP CONVEYOR
DATA SERVER

132" X 246" X 125"H

33000 (LBS)
