Double Column Vertical Machining Center, w/Automatic (2) Pallet Changer, Mazatrol M-32-2 Control, 39.37"/20"/18.11" X/Y/Z, 25 HP, Cat 40, 10,000 RPM, 40 Pos ATC, Color Part/Tool Path Graphics, Auto Tool Length Probe, Rigid Tapping, Chip Conveyor

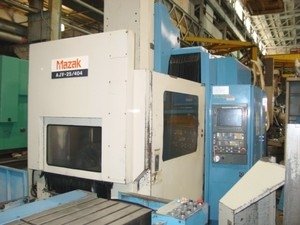

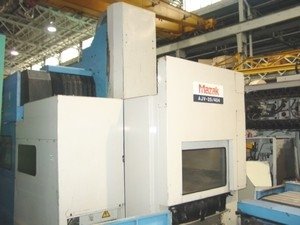

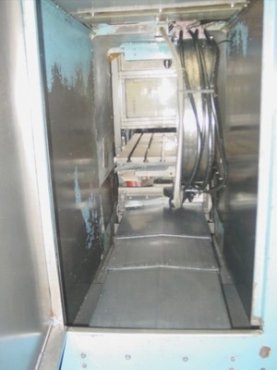

1991 Mazak AJV 25/404
Double Column Vertical Machining Center
w/2 Pallet Changer
Mazatrol M-32 Control

Specifications:

Table Size (2)48.8" x 19.68"
Distance Between Columns 25.59"
Table Load Capacity 1,760 Ibs
Table Top to Spindle Nose 7.87" - 26"
X-Axis Travel 39.37"
Y-Axis Travel 20"
Z-Axis Travel 18"
Rapid Traverse Rates X,Y/ Z 945/708 IPM
Spindle Motor 30 Min./Cont. 25 HP / 20 HP
Spindle Speed To 10,000 RPM
Spindle Taper CAT 40
Tool Magazine Capacity 40 Position ATC
Maximum Tool Diameter / Length 5.9" /13.78"
Maximum Tool Weight 17.6 Ibs.
Machine Dimensions LxWxH 231"x108"x120"
Machine Weight 18,960 Ibs.

Specifications subject to confirmation at inspection

Equipped With:

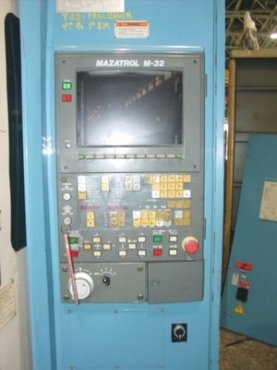

Mazak Mazatrol M-32 Control Conversation Programming
Color Part/tool Path Graphics Auto Tool Length Measure
Adaptive Feedrate Control Tool Breakage Detection
Tool Life Monitoring Full Enclosure

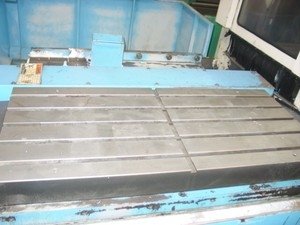

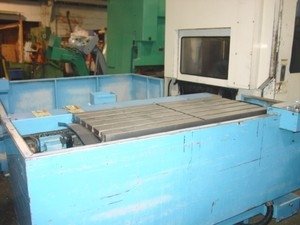

(2) Pallet Changer (2) Chip Augers
Ridgid Tapping All Available Manuals

Condition: Good - Very Good

18300 (LBS)
