Description:
"Double Column Vertical Machining Center, w/Automatic (2) Pallet Changer, Mazatrol M-32-2 Control, 39.37"/20"/18.11" X/Y/Z, 25 HP, Cat 40, 4,000 RPM, 40 Pos ATC, Color Part/Tool Path Graphics, Auto Tool Length Probe, Rigid Tapping, Haas 8" 4th Axis Rotary Table, Chip Conveyor
Specifications:

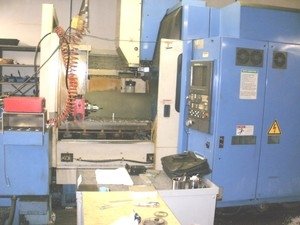

1995 Mazak AJV 25/404
Double Column Vertical Machining Center
Automatic (2) Pallet Changer

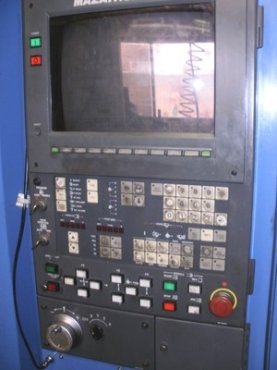

Mazatrol M-32-2 Control
Specifications:
Table Size (2)48.81" x 19.68"
Table Load Capacity 1,760 Ibs
Table Top to Spindle Nose 7.87" - 25.98"
Distance Between Columns 25.49
X-Axis Travel 39.37"
Y-Axis Travel 20"
Z-Axis Travel 18.11"
Rapid Traverse Rates X, Y, Z 945/945/708 IPM
Spindle Motor 30 Min./Cont. 25/20 HP
Spindle Speed 28 - 4,000 RPM
Spindle Taper CAT 40
Tool Magazine Capacity 40 Position ATC
Maximum Tool Diameter / Length 3.93"-5.9" /11.81"
Maximum Tool Weight 19.6 Ibs.
Machine Dimensions LxWxH(mach. only) 150"x112"x120"
Machine Weight 18,960 Ibs. Ibs.
Specifications subject to confirmation at inspection
Equipped With:
Mazatrol M-32-2 Control Conversation Programming
Color Part/Tool Path Graphics Auto Tool Length Measure
Tool Breakage Detection Tool Life Monitoring
Adaptive Feedrate Control Rigid Tapping
(2) Pallet Changer Coolant System
Front/Rear Chip Augers Chip Conveyor
Haas 8" 4th Axis Rotary Table All Available Manuals
Condition: Good - Very Good
Dimensions:
173"x102"x120"
Weight:
18300 (LBS)
