Machine is in good condition. Inspect under power.

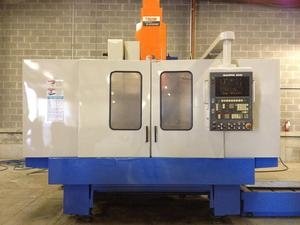

1994 MAZAK V 515/40 VERTICAL MACHINING CENTER

SPECIFICATIONS:
X-AXIS............................................................... 41.33"
Y-AXIS............................................................... 20.07"
Z-AXIS............................................................... 22.04"
TABLE SIZE....................................................... 51.18" X 21.65"
SPINDLE SPEED.............................................. 25 – 6,000 RPM
SPINDLE TAPER.............................................. CAT 50
SPINDLE NOSE TO TABLE TOP..................... 7.87" - 29.92"
SPINDLE TORQUE........................................... 544 FT. LBS.
MAIN MOTOR.................................................... 25 / 20 HP AC
TOOLS............................................................... 30
TABLE LOAD CAPACITY.................................. 3300 LBS
RAPID TRAVERSE RATES (X&Y/Z)................. 1024 / 787 IPM
TOOL CHANGE TIME (T-T / C-C)..................... 2.4 / 5.5 SECONDS
MAX TOOL DIAMETER..................................... 4.92" / 10.23"
MAX TOOL LENGTH......................................... 15.74"
MAX TOOL WEIGHT......................................... 44.1 LBS.
MACHINE DIMENSIONS (L X W X H)............... 135.6" X 128.9" X 119.9"
MACHINE WEIGHT............................................ 19,620 LBS

EQUIPPED WITH:
MAZATROL M32 CNC CONTROLS
AIR BLAST
MONITORING SYS B - MP3 PREP
PREP FOR COOLANT THRU
CHIP CONVEYOR

135.6" X 129" X 120"

19,620 lbs
