Mazatrol M-32 A CNC Control

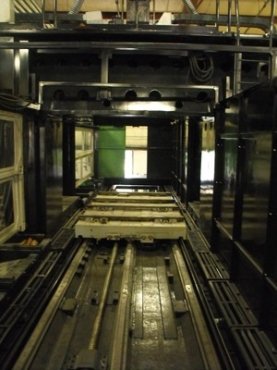

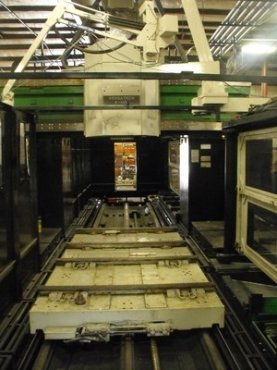

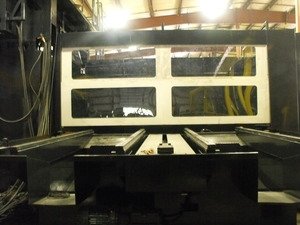

2-Station Pallet Changer (APC Side-Loading Type B)

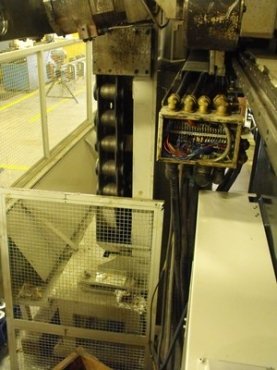

80-Station ATC
5-Station Automatice Head Changer
EIA Function (Upgraded with latest 5-Side Machining Software, Extra Memory
Thru Spindle Coolant
Drilled and Tapped Holes in the table
(1) 4-Position (90 Deg.) Right Angle Head
(1) 2/1 Speeder Head (8000 RPM)
(1) Vertical Spindle Exension Head
50 HP Spindle Drive
Specifications:
X Axis Travel (Table Travel) 196.85"
Y Axis Travel (Spindle Head) 137.80"
Z Axis Travel (Ram Travel) 39.37"
Distance Between Centers 98.43"
Distance Table to Spindle Nose 18.11" to 57.48"
Table Size 78.74" x 157.98"
Table Weight Capacity 35,200 LBS
Table Nose to Table Top 50.79"
Rapid Traverse, X & Y Axes 787 IPM
Rapid Traverse, Z Axis (Ram) 590 IPM
Cutting Feed, X & Y Axex 196.85 IPM
Ram Cross Section 16.73" x 16.73"
Spindle Speed 20 - 4000 RPM
Spindle Nose Taper CAT #50
Spindle Motor 50 HP
Max. Tool Diameter, Adjacent Empty 10.24
Max. Tool Diameter, Adjacent Full 5.12"
Max. Tool Length 19.7"
Max. Tool Weight 66 LBS
Overall Height 212.72"
Approx. Weight 150,000 LBS
