Coolant thru Spindle. Inspect under Power!

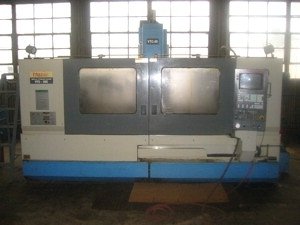

1997 MAZAK VTC-20C Vertical Machining Center

Specifications:
Travel: X-Axis................. 64.09"
Y-Axis............... 20.08"
Z-Axis............... 20.05"
Table Size...................... 78.7" - 20.01"
Spindle Speed................... 8,000 RPM
Main Motor...................... 15 / 10 HP AC
Spindle Taper................... Cat 40
Tools........................... 48 (2 x 24)
Spindle Nose to Table Top....... 4.3" - 24.4"
Table Load Capacity............. 2,160 lbs.
Rapid Traverse Rates (X/Z)...... 945 / 797 IPM
Max Tool Diameter............... 3.14" / 4.33"
Max Tool Length................. 13.7"
Max Tool Weight................. 13.78 lbs.
Machine Dimensions (L x W x H).. 154" x 124" x 106"
Machine Weight.................. 14,500 lbs

Equipped with:
MAZATROL M-PLUS CNC CONTROL
(2) Auto Tool Length Measurement
Conversational Programming
Tool Breakage Detection
EIA/ISO Input Function
Tool Life Monitoring
Graphic Display
Synchronized Tapping
12" Monochrome CRT
EIA/ISO Input Function
Coolant Thru Spindle

154" x 124" x 106"

14,500 lbs
