M-Plus Control with Coolant thru Spindle
Very Good Condition!!
Specifications:
Specifications:
Table Size……………………………… 80” x 30”
Table Load Capacity…………….. 3000 lbs
X axis travel……………………………. 65”
Y axis travel……………………………. 30”
Z axis travel……………………………. 26”
Distance table to Spindle……… 8” to 34”
Spindle Nose………………………… CAT 40
Spindle Speed……………………….. 40 to 10,000 RPM
Spindle Horsepower………………. 15 HP
Tool Changer………………………… 24 Tools
Rapid traverse……………………….. 787 IPM for X and Y, 590 IPM for Z
Machine Weight……………………… 18,000 lbs
Space Required……………………. 223” x 166” x 112”H
Equipped with:

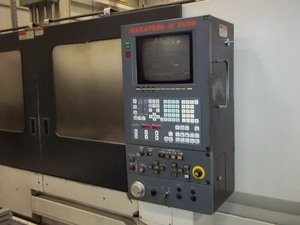

Mazatrol M-Plus Control
EIA/ISO Input
Auto Tool Length Measuring
Coolant thru Spindle
Chip Conveyor
