Description:
Bridge Type Vertical Machining Center, With Fanuc 18i CNC Control, 120" x 61.4" x 30.7" X,Y,Z, 25 HP, 6,000 RPM, Geared Spindle Head, Cat 50, 40 Pos ATC, High Speed Machining Option, Box Ways, Dual Side Chip Augers, Chip Conveyor
Specifications:
2007 Mighty Viper Model PRO-3150
Bridge Type Vertical Machining Center

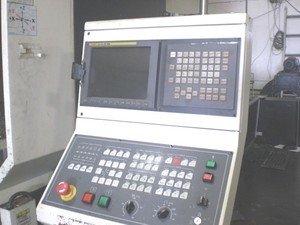

Fanuc 18i Control
Specifications:
X-Axis Travel 120.47”
Y-Axis Travel 61.4”
Z-Axis Travel 30.71”
Distance Between Columns 66.14”
Distance Spindle Nose/Table 6.3” – 37”

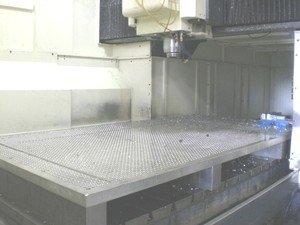

Table Size 122” x 57.1”
Table Load Capacity 13,227 Lbs.
X,Y,Z Rapid Traverse/Feed 472/275 IPM
Spindle Taper Cat 50
Spindle Motor 25 HP
Spindle Speed 60-6,000 RPM
Spindle Gearbox 2 Ranges
Tool Magazine Positions 40 Positions
Machine Weight - Net 57,320 lbs.
Specifications subject to confirmation at inspection.
Operated in Mold Shop, Machining Steel - Aluminum
Approximately 5700 Operating Hours
Equipped With:
Fanuc 18i Control Coolant System
Riser Block Tooling Table High Speed Machining Option (Nano)
Dual chip Augars Chip Conveyor
Geared Head All Available Manuals
Condition: Very Good
Weight:
57,320 lbs
