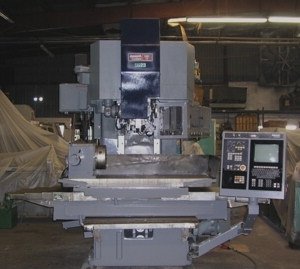

MONARCH VMC 75 VERTICAL MACHINING CENTER

Specifications:
Year of manufacture 1985
Serial no. 84054
Model VMC 75
Control GE 2000
Overall table size 20" x 40"
Top Plate21” x 71” x 4” thick
Table load capacity 2000 lbs.
Travels:
X Axis travel (lft & rt) 40"
Y Axis travel (in & out) 20"
Z Axis travel (up & dwn) 20"
ATC 20 tools
Tooling45 plus tool holders ($ 2,500 plus)
Spindle speeds
Spindle drive motor 10 hp
Drive motorsGettys drives and drive motors
Spindle chuck taper No. 45 ASA, several tool holders
Rapid traverse rate 400 ipm
Electrics440/3/60
Approx. shipping weight 18,000 lbs.

Houston, Texas SUBJECT TO PRIOR SALE

Equipped with:
12” Hyperdex 360 rotary table with 2” bore
12” 3 jaw scroll chuck with a 2” bore
45 plus tool holders

18,000 lbs
