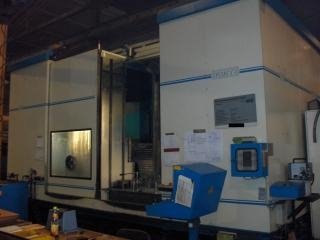

Vertical – Travelling Column – Machining Centre

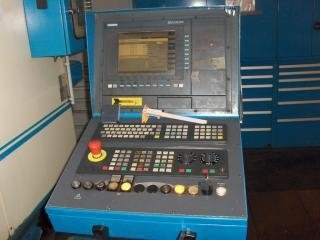

cnc-control SINUMERIK 840 D with option SAFETY - INTEGRATED
working table:
dimensions 3.120 x 700 mm
max. table load 3.000 kg
additional open space right and left
for assembling of tilting devices
travels, feed:
travels X-Y-Z 3.000 x 630 x 630 mm
X – travels at swing processing 2 x 1.225 mm
max. feed rate X, Y - axis 1 – 8.000 mm/min
max. rapid feed X, Y – axis 40 m/min
max. rapid feed Z – axis 20 m/min
max. rapid feed X-, Y-, Z-axis 15 kN

milling unit:
tool taper SK 50 DIN 69871
spindle speed 20 – 6.000 min-1
Ø in front bearing 100 mm
Main power 28/43 kW – 100/40 % ED
torque 535/820 Nm – 100/40 % ED
gear steps 2 steps, steps 1:1, 1:4

tool changer :
magazine chain type
number of tool places 54
max. tool Ø 125 mm
at 2 free neighbour places 230 mm
max. tool length 400 mm
max. tool weight 30 kg
encoding variable place coding

dimensions: length/width/height 6,7 x 3,8 x 4,0 m
weight ca. 21 tons
electrical connection 400 V, 50 Hz

-
