Description:
Machine Equipped with: OSP 700M control, mac man, rigid tapping, 3.5" floppy drive, RS232 port, manual pulse generator, chip conveyor, 39.4" x 18" table size, 1,100 lbs. table capacity, 30" X axis travel, 18" Y axis Travel, 17.7" Z axis Travel, 6.34"-24" table to spindle distance, 1181 IPM Rapid travels x and Y, 945 IPM Rapid Travels Z axis, 0-6000 spindle speed, Cat 50 Spindle Taper, 32 station tool changer, 26 lb. max tool weight, approx. machine weight-16,000 lbs.
Specifications:
Proposal for Machine #9153
We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

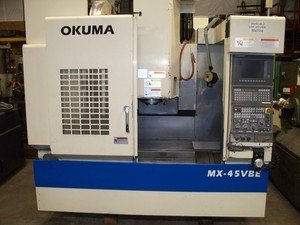

1-Used Okuma Vertical Machining Center
Model Number: MX45VBE
Serial Number: 0808-0334
Mfg: 1997
Specifications:
Table size 39.4 x 18”
Table loading capacity 1,100 lbs
X axis travel 30”
Y axis travel 18”
Z axis travel 17.70”
Distance table- spindle 6.3”-24”
Rapid travels, X&Y 1181 IPM
Z 945 IPM
Spindle speeds 0-6000 rpm
Spindle taper Cat 50
Main spindle motor 15hp 220V 3PH
Auto tool change 32 stations
Tool change time 2 seconds
Max tool weight 26 lbs
Dimensions 94 x 90 x 105”
Approx. weight 16,000 lbs
Machine Equipped With:
OSP 700M control, mac man, rigid tapping, 3.5 floppy drive, RS232 port, manual pulse generator, chip conveyor, available manual
Price FOB Orange City, IA $39,500.00
Dimensions:
94" x 90" x 105"
Weight:
16,000 lbs.
