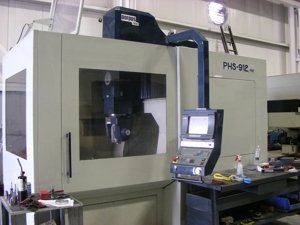

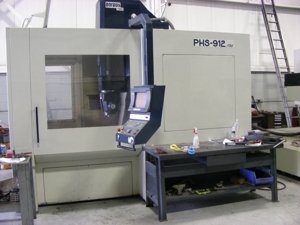

THIS WORLD CLASS FULL 5 AXIS MACHINE HAS BEEN USED FOR HIGH ACCURACY FINISHING ONLY!
Specifications:
A- AXIS ROTATION +/- 110 DEGREES
C- AXIS ROTATION +/- 220 DEGREES
TABLE CLAMP SURFACE 53" X 31.5" LOAD 4,400 lbs
SPINDLE TAPER HSK-32E..... SPINDLE SPEEDS 0-40,000 RPM
SPINDLE MOTOR 6 kw... TOOL LASER PROBE
CONTROL SELCA S4045 PD 5- AXIS
FEED RATE 30,000mm / min (1,181 IPM)
TOOL CHANGER 20 POSITION
SWARF FLUSH
FULL CSA ENCLOSURE
Spindle lubrication with special high speed grease. Cooling by means of liquid recirculation. Air blower for taper cleaning through spindle arbor. Automatic tool clamp.
Continuous machining rotation.

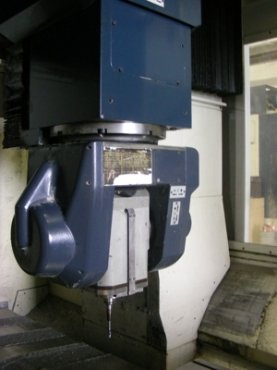

Rotation angle A-axis +-110
Rotation angle C-axis +-220
Controlled by means of the NC axis in automatic mode and of an electronic handwheel in manual mode with digital display of the positions on the NC-screen. Automatic hydraulic clamp into position.

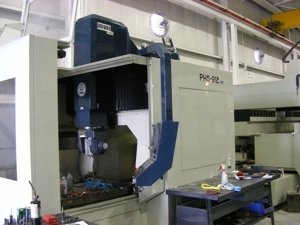

Higher and larger bridge and special configured enclosure included.
(vertical daylight between table and spindle nose of mm. -15/585)
-Work and rapid feeds for the three axes, independent or simultaneously among them, driven by means of three AC-Brushless digital motors having variable feedrate.
-Linear guideways with pre-loaded rollers on all three axis.
-Three high precision ball screws with double pre-loaded nuts.
-Manual movements of the machine carried out by means of a single electronic handwheel switchable on the three axes.
-Centralised controls for all commands of the machine.
-Automatic and centralised lubrication unit.
-Electropump with tool coolant system.
-Telescopic steel way covers for the longitudinal slideways.
-Rubber guideways protection for the cross slideways.

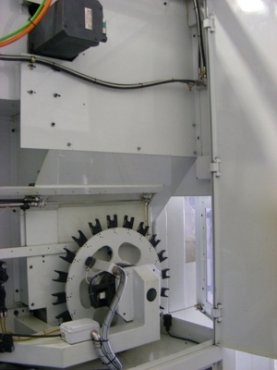

-Automatic tool changer, wheel type with a 20 tool capacity, mounted outside of the working area of the machine.
-Integral safety and splash guard closing the working area and having anti-breakage windows and sliding doors and working lights.
-Chip removal system with water jets and removable recovery tanks.
-Water gun system to clean the inside of the enclosure.
