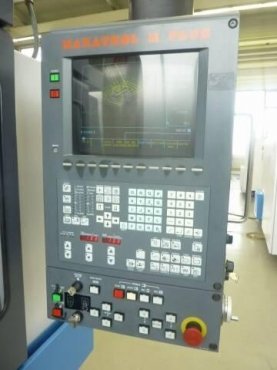

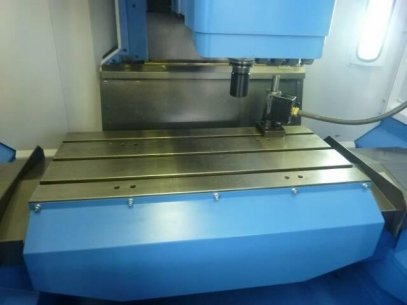

Initial: 10-1999 CNC CONTROL Mazatrol M-Plus color graphics display Technical data: Working table: table size (clamping): 900 x 410 mm max. Table load: 500 kg traverse: X-axis travel: 560 mm Y-axis 410 mm Z axis travel: 460 mm Travel: X / Y-axis: 24 m / min Z-axis: 18 m / min main spindle: Speed : 50-7000 U / min tool shank: SK 40 Main drive power: 7.5 kW Tool magazine: Number of tool stations: 24 Max. Tool diameter: 100 mm max. Tool length: 350 mm max. Tool weight: 10 kg Machine Specifications: Power consumption: 22 KVA Machine weight: 5,300 kg Machine dimensions: L x W x H: about 3.20 x 2.00 x 2.50 m NORMALZUBEHOeR: EIA / ISO programming function Mazak Monitoring System C Auto. Tool length measuring system interface for Mazak Micro Disk and MSK chips and coolant protection by fully enclosed work area complete. Coolant system work area lighting documentation OPTIONAL: Colour monitor air blowing on the spindle high pressure coolant through the spindle, pressure at the pump about 14 bar synchronous tapping (without compensation)
