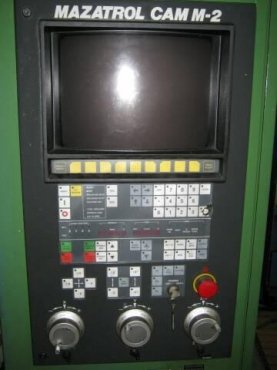

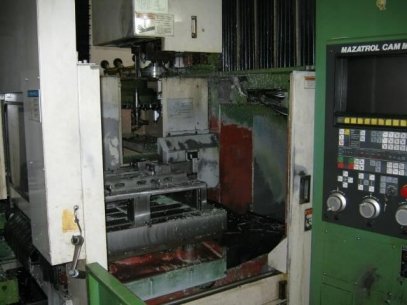

CNC CONTROL Mazatrol CAM M-2 with a color graphics screen work table: table size (clamping): 550 x 850 mm max. Table load: 500 kg traverse: X-axis travel: 635 mm Y-axis: 508 mm Z axis travel: 460 mm Travel: X / Y-axis: 14 m / min Z-axis: 12 m / min main spindle: Speed : 28-4000 U / min tool shank: CAT 40 Main drive power: 5.5 kW Tool magazine: Number of tool stations: 30 Max. Tool diameter: 100 mm max. Tool length: 300 mm max. Tool weight: 7 kg machine data (without 2-pallet changer) Power consumption: 19.1 KVA Machine weight: 5.200 kg Machine dimensions: L x W x H: approximately 2.90 x 2.70 x 2.90 m NORMALZUBEHOeR: MAZAK automatic monitoring system C. Tool length measuring system complete. Coolant system coolant and swarf guard the front door lock switches on Mazak micro disk interface for MSK and work space illumination documentation OPTIONAL: 2-pallet changer tool magazine for 30 tool stations air blowing on the spindle chip conveyor, discharge to the rear
