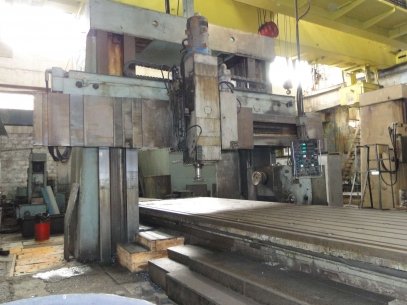

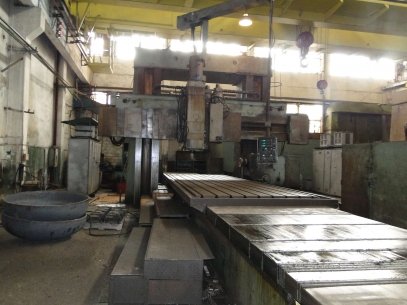

The plano mill is in a very nice condition. It is complete and could be inspected under power.
Specifications:
Year of manufacture 1985

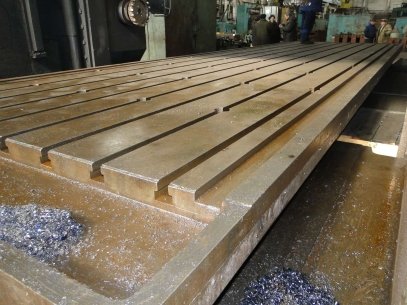

Table surface, mm 2500 x 8000
Max. workpiece height, mm 2500
Max. workpiece dimensions, mm 8000 x 2500 x 2000
Max. workpiece weight, kg 65000
Max. table movement, mm 8500
Distance between columns, mm 3060
Spindle taper ISO 60
Max. mill diameter, mm 500
Number of spindle speeds 18
Spindle speed, rpm 20...1000
Main motor power, kW 30
Machine dimensions, mm 22460 x 8830 x 6700
Machine weight, mm 136000
